3. Paper Feed Roller × 3
See "Replacing the Paper Feed Roller".
4. Fusing Unit
See "Replacing the Fusing Unit".
• p.129 "Replacing the Friction Pad"
• p.131 "Replacing the Transfer Roller"
• p.134 "Replacing the Paper Feed Roller"
• p.138 "Replacing the Fusing Unit"

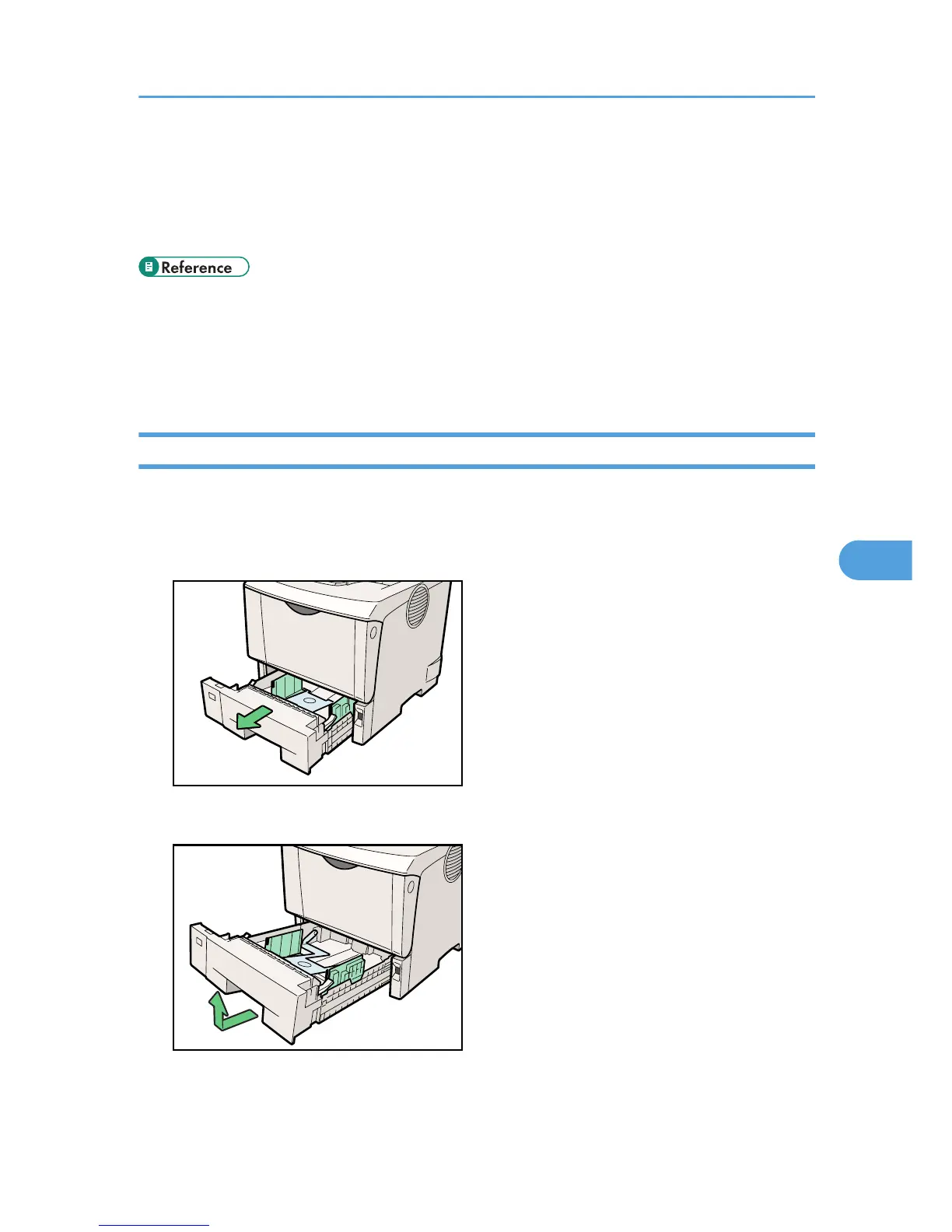

Replacing the Friction Pad
Replace all the friction pads in the tray. The following procedure shows how to replace the tray's friction
pad (Tray 1) and the other are for the paper feed unit(s) (Tray 2, 3).
1. Pull out the paper tray until it stops.
BMU017S
2. Lift the front side of the tray, and then pull it out of the printer.
BMU018S
Replacing the Maintenance Kit
129
