• After finishing installation, check the Gigabit Ethernet board is installed properly: print the
configuration page from the [List/Test Print] menu. If it is installed properly, you will see "Gigabit
Ethernet" for "Device Connection" on the configuration page.
• If the Gigabit Ethernet board is not installed properly, reinstall it following this procedure. If you cannot
install it properly even after attempting reinstallation, contact your sales or service representative.
• You need to make settings with the control panel before using the Gigabit Ethernet board. For details,
see "Ethernet Configuration".
• "Printing the Test Page", Quick Installation Guide.
• p.61 "Ethernet Configuration"
Installing the IEEE 1284 Interface Board
• Before you begin any installation, always ground yourself by touching something metal to discharge
any static electricity. Static electricity can damage the IEEE 1284 interface board.
• Do not subject the IEEE 1284 interface board to physical shocks.
• For connection to the IEEE 1284 interface board, use a half pitch 36-pin interface cable.

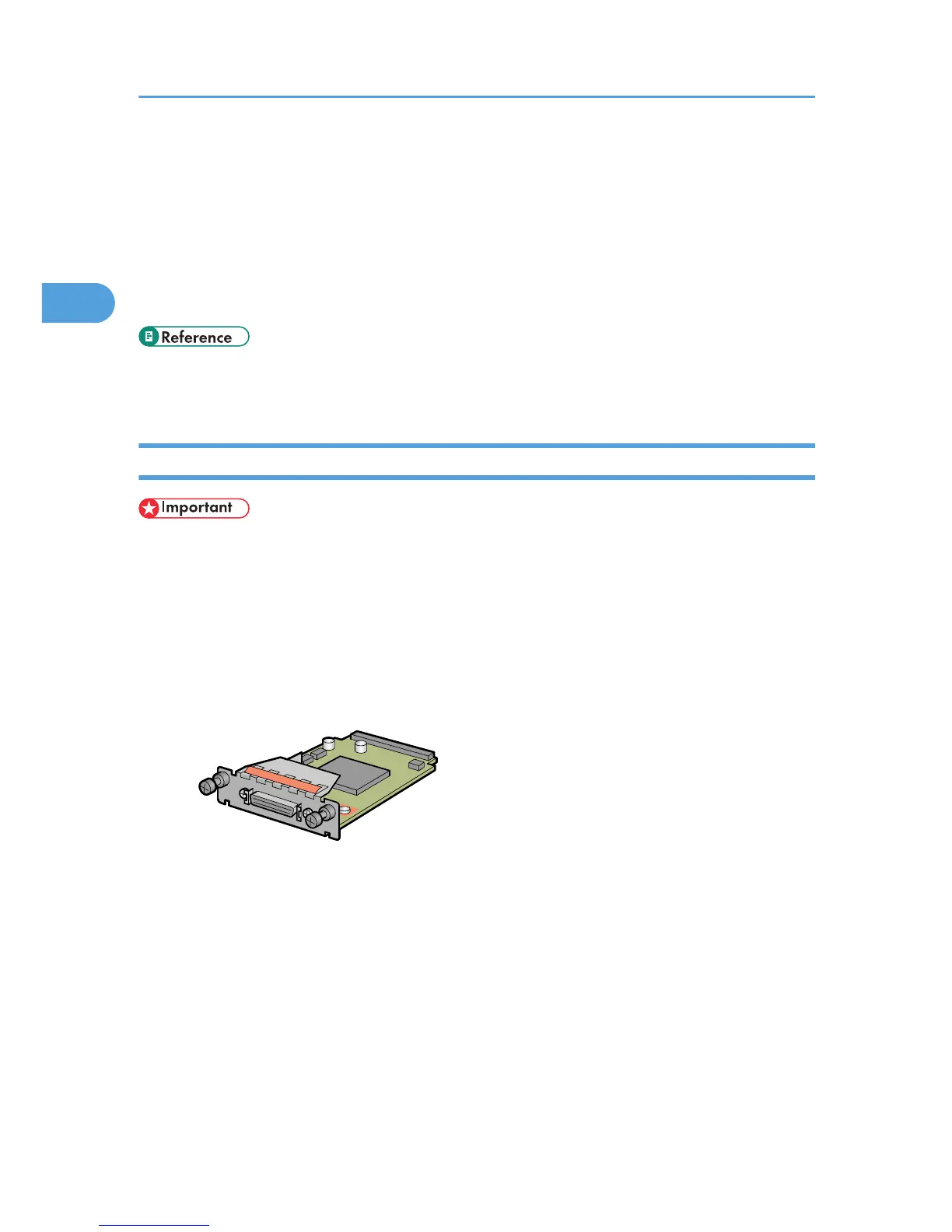

1. Check the package contains the following:
BFL302S
2. Turn off the power, and then unplug the power cable.
