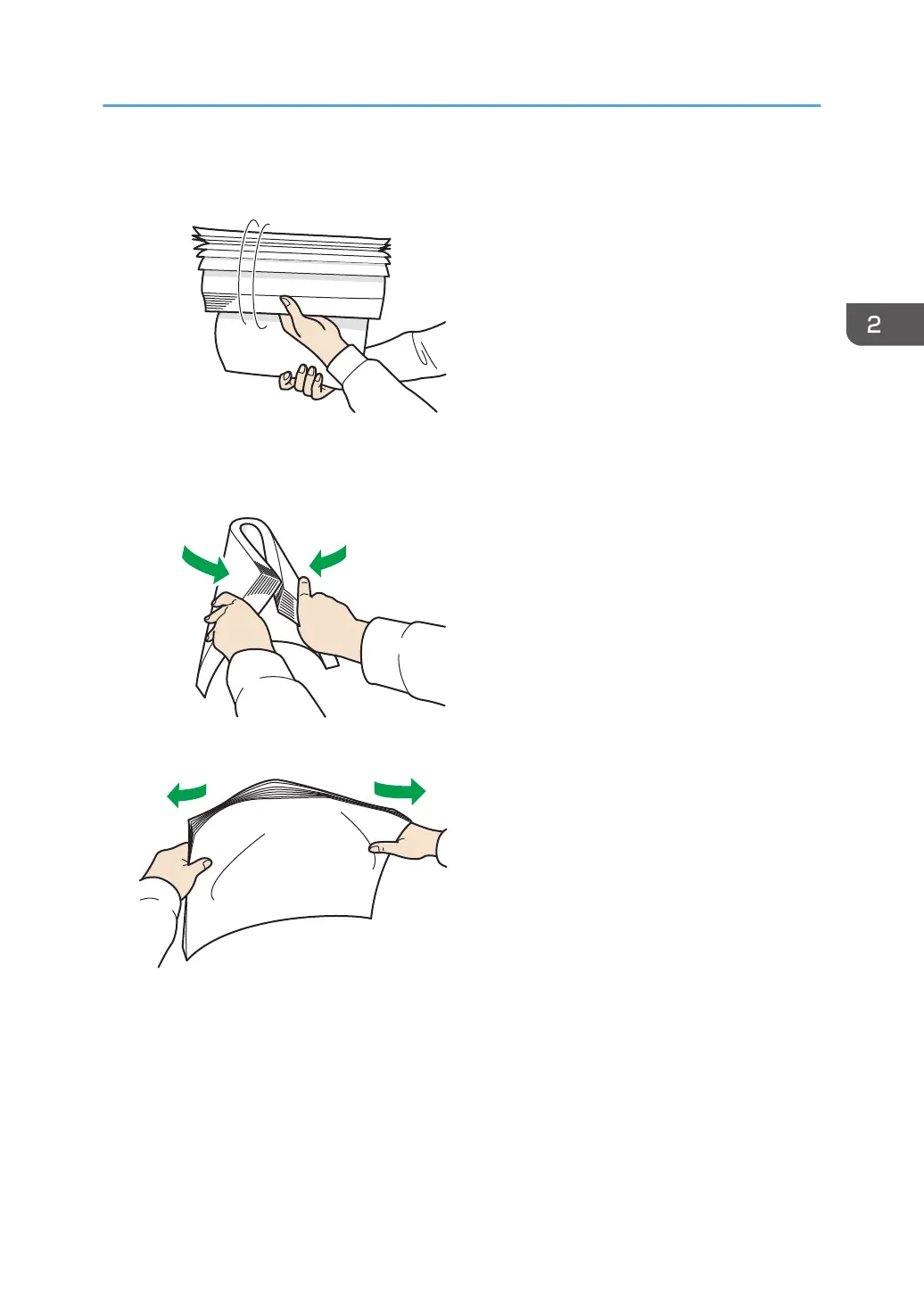

1. Fan the stack of paper to load.

D0CMIC1421

2. Holding its shorter ends, flex the stack back and forth to create space between the sheets.

Repeat this several times.

D0CMIC1422

D0CMIC1423
