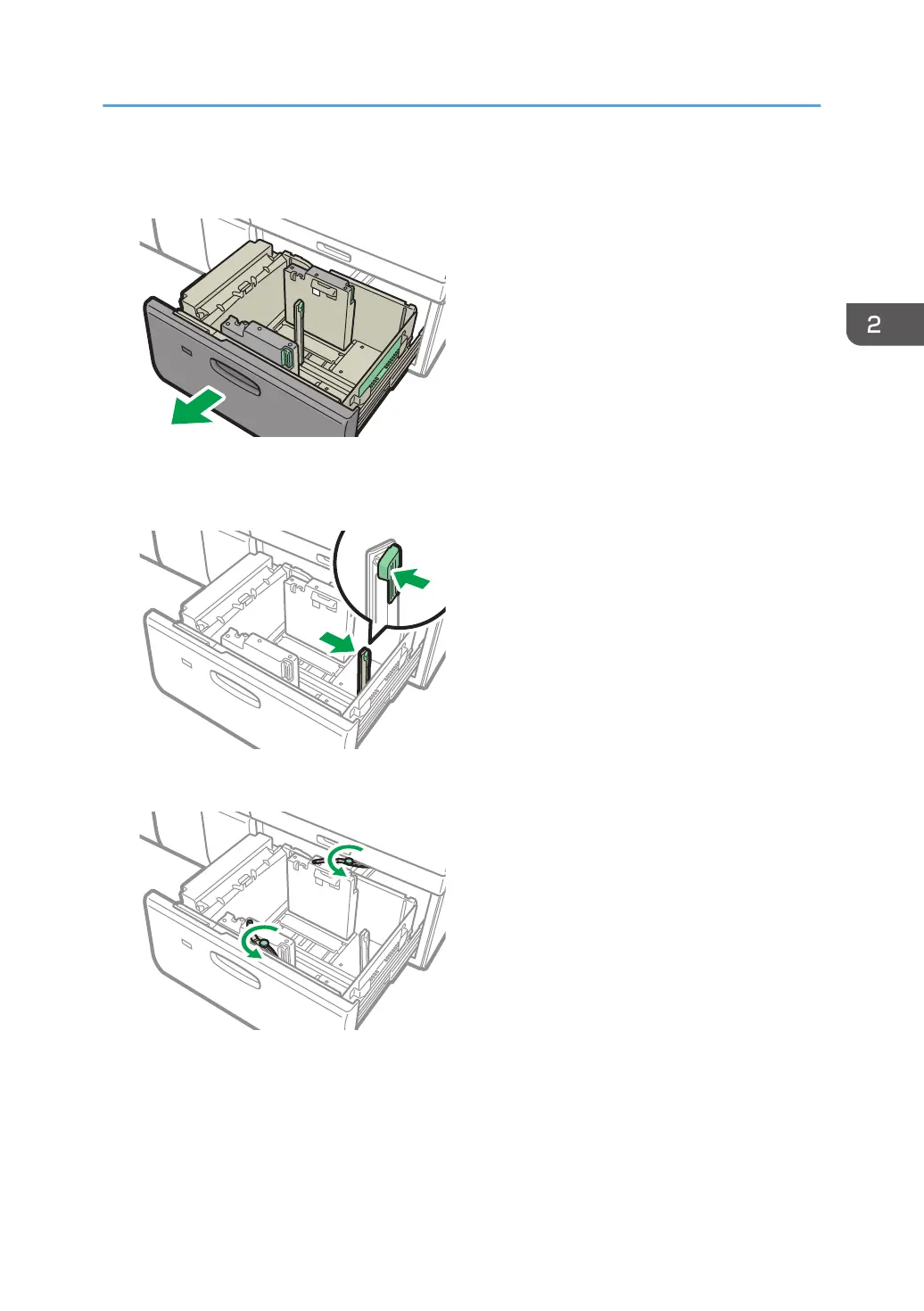

1. Check that paper in the paper tray is not being used, and then pull the tray carefully out

until it stops.

M0EBIM2122

2. Remove paper if loaded.

3. Release the fence.

M0EBIM2123

4. Loosen the screw on the arm holding the side fence in place.

M0EDIM0140
