1.Detailed Descriptions
11
• Return to original position: Leading edge of succeeding sheet passes transport sensor
The shift roller detects the home position by the shift roller HP sensor.
The shift motor operates CW/CCW, and shifts the paper from front to back. The home position is
located at the back of the displacement range, and is detected by the shift roller HP sensor.
No.
Description
No.
Description

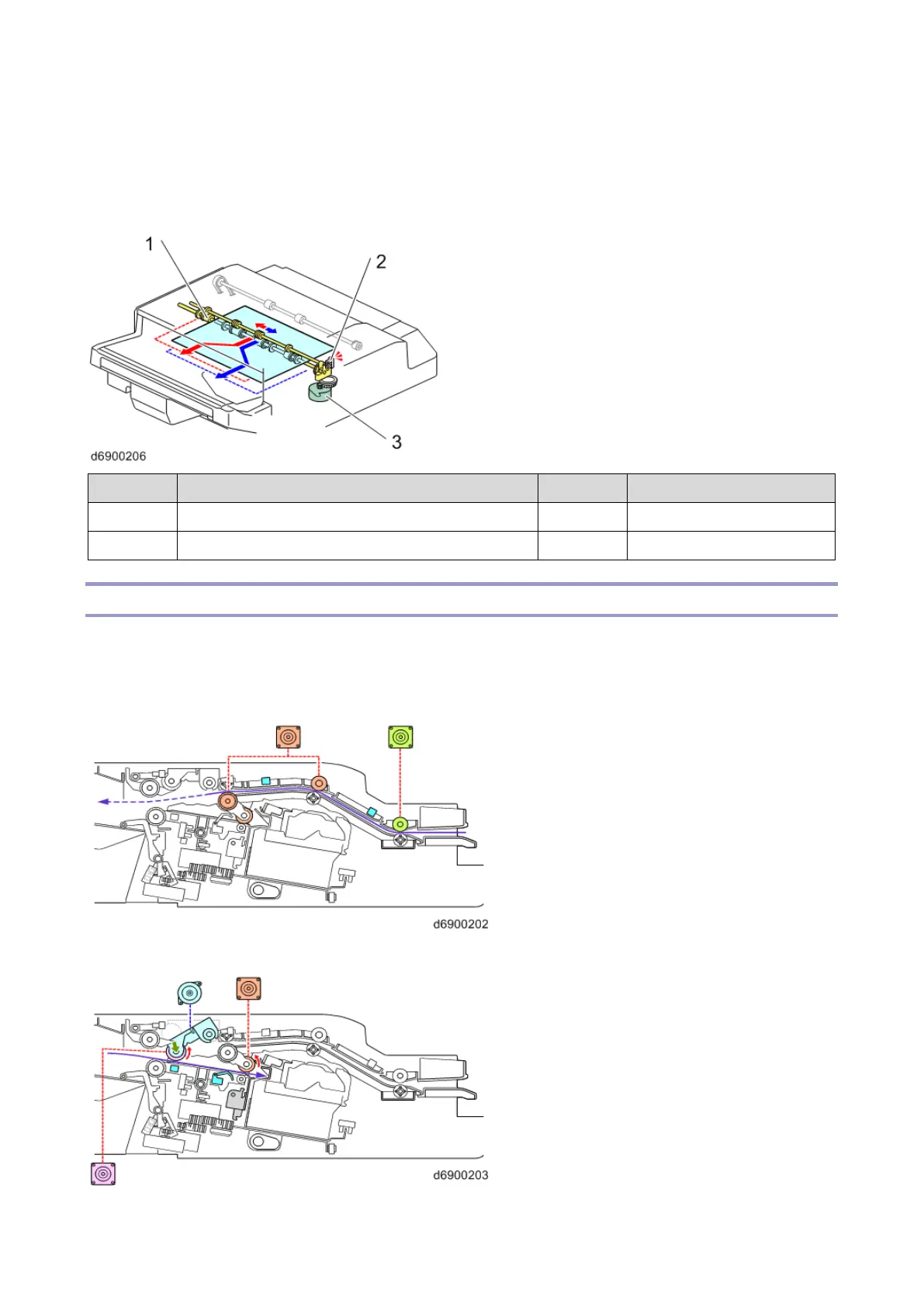

1
Shift roller
3
Shift motor
2
Shift roller HP sensor
-
-
Staple Eject Mechanism
Staple eject requires that transported paper is temporarily stored in a staple tray. After rear edge
detection of the transported paper is performed by a transport sensor, a positioning roller unit descends
and transports it to a staple tray.
