Ricoh SR3250 - Parts Layout

1.Detailed Descriptions
6

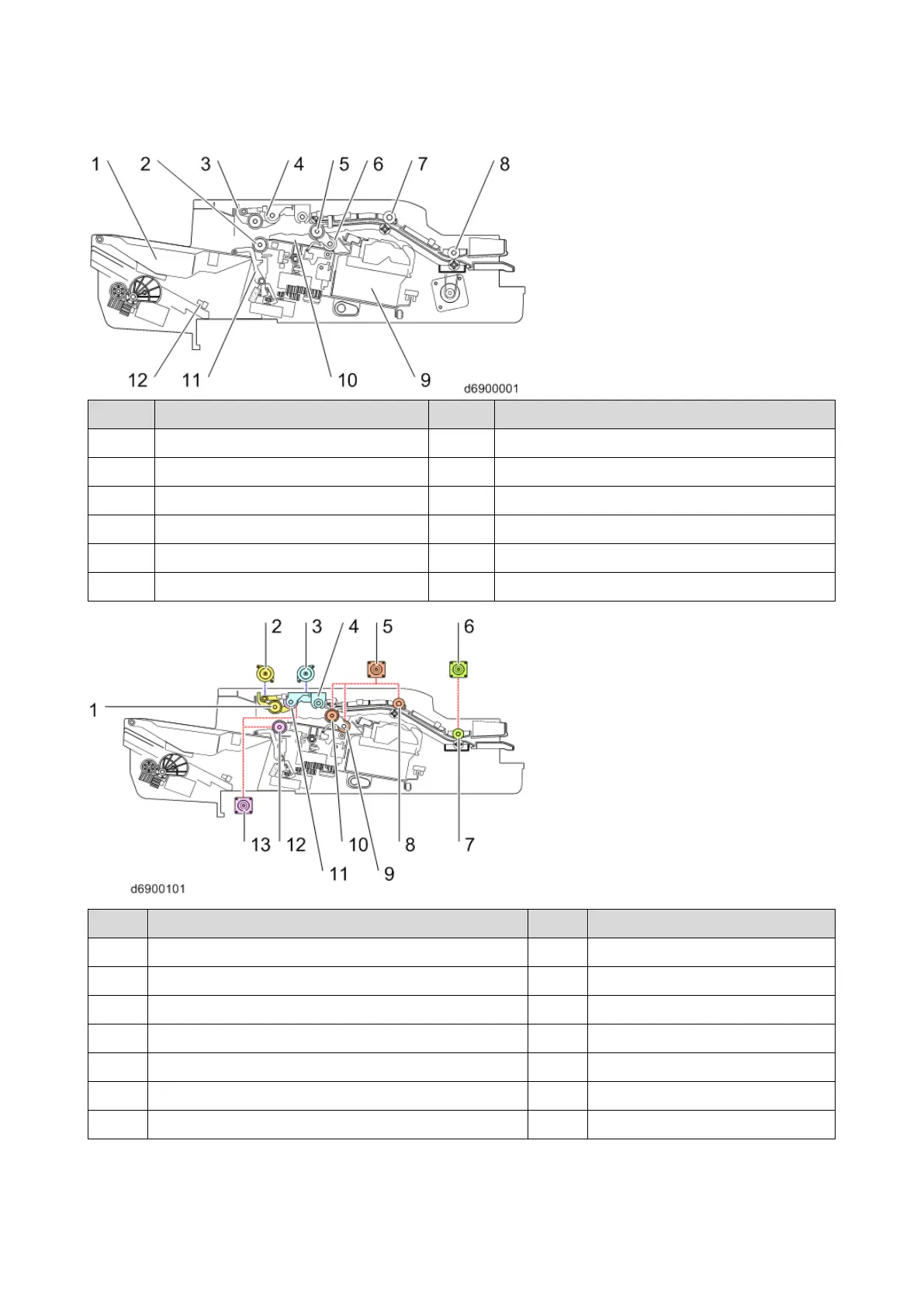

Parts Layout
No.
Description
No.
Description
1
Paper exit tray
7
Transport roller
2
Paper ejection roller
8
Entrance roller
3
Paper exit guide plate
9
Stapler
4
Positioning roller
10
Staple tray (jogger)
5
Shift roller
11
Stack height detection lever
6
Reverse roller
12
Full sensor
No.
Description
No.
Description
1
Paper exit guide plate
8
Transport roller
2
Paper exit guide plate motor (M12)
9
Reverse roller
3
Positioning roller motor (M14)
10
Shift roller
4
Positioning roller unit
11
Positioning roller
5
Transport motor (M8)
12
Paper ejection roller
6
Entrance motor (M10)
13
Paper exit motor (M9)
7
Entrance roller
-
-
