Ricoh SR3250 - Shift Motor (M11)

2.Replacement and Adjustment
37

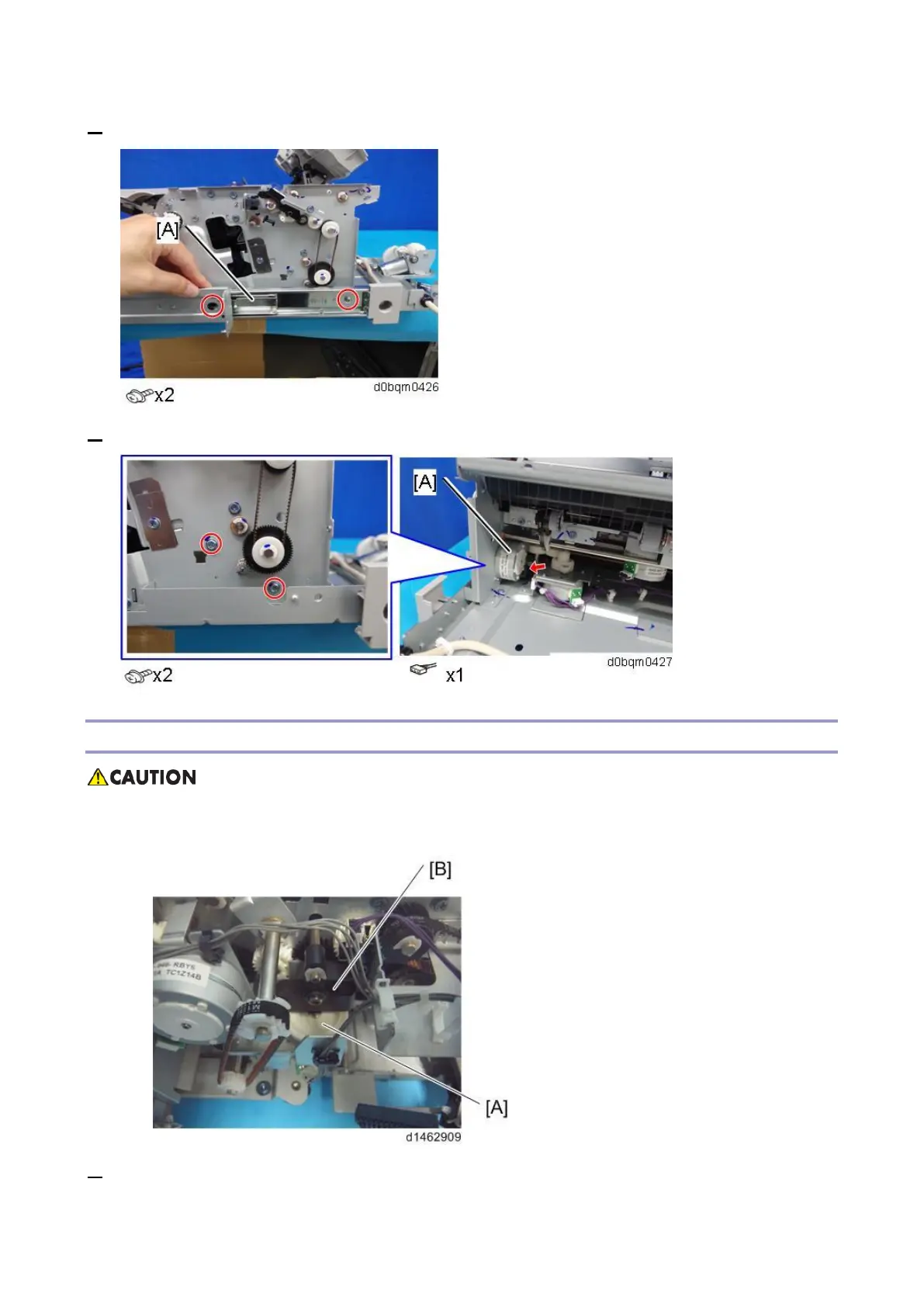

3. Remove the rear rail [A].
4. Remove the positioning roller motor (M14) [A].
Shift Motor (M11)
• After attaching, rotate the knob, and check that all gear trains can rotate.
• After attachment, when the cam [A] is rotated, check that the link [B] interlocks.
1. Remove the controller board bracket (Controller Board (PCB1)).
