Ricoh SR3250 - Paper Exit Guide Plate HP Sensor (S7); Shift Roller HP Sensor (S11)

2.Replacement and Adjustment
28

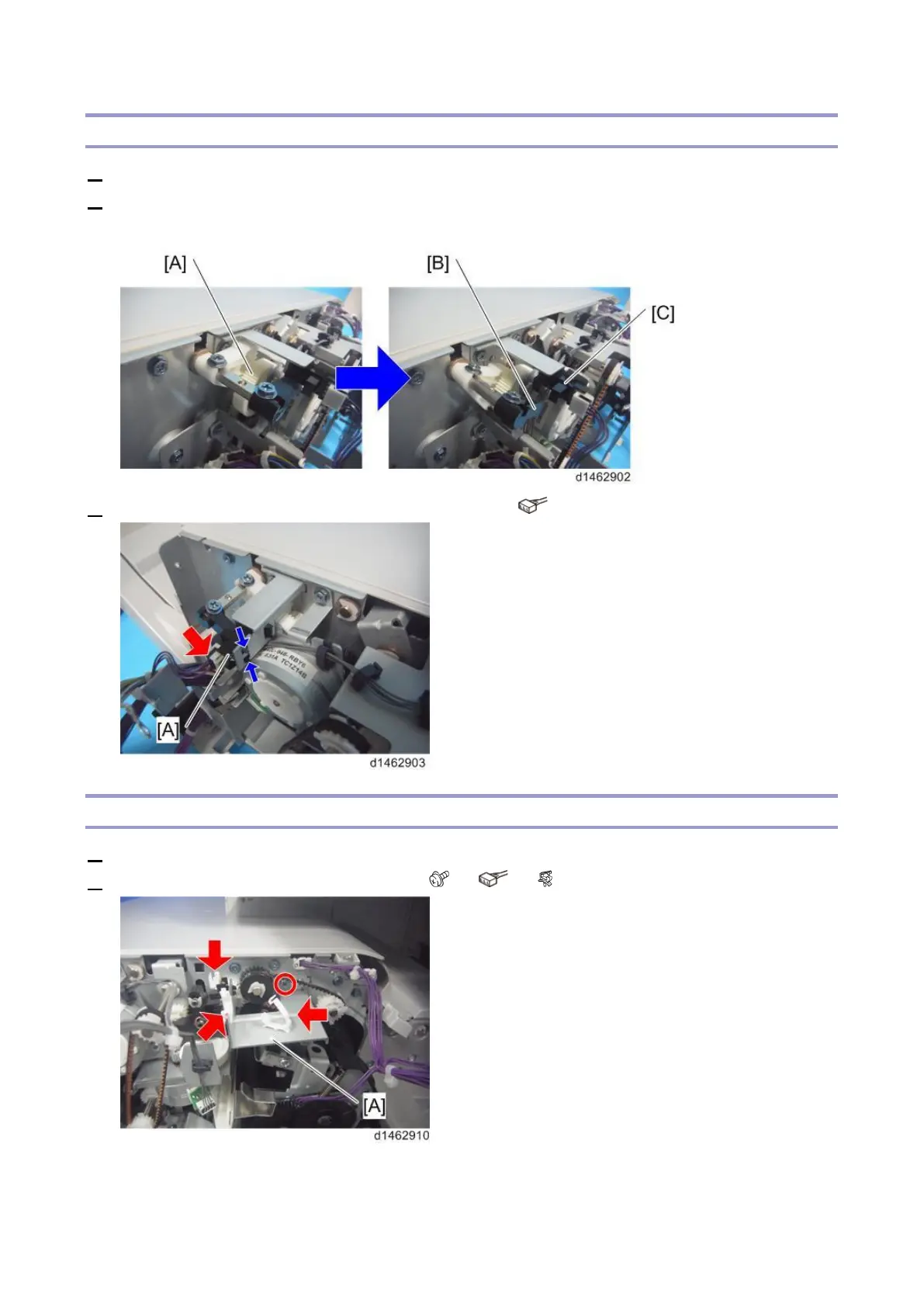

Paper Exit Guide Plate HP Sensor (S7)
1. Remove the controller board (Controller Board (PCB1)).
2. Rotate the paper exit guide plate gear [A] counterclockwise, and release the paper exit guide plate
[B] from the paper exit guide plate HP sensor (S7) [C].
3. Remove the paper exit guide plate HP sensor (S7) [A] ( ×1).
Shift Roller HP Sensor (S11)
1. Remove the controller board bracket (Controller Board Bracket).
2. Remove the shift roller HP sensor unit [A] ( ×1, ×1, ×2).
