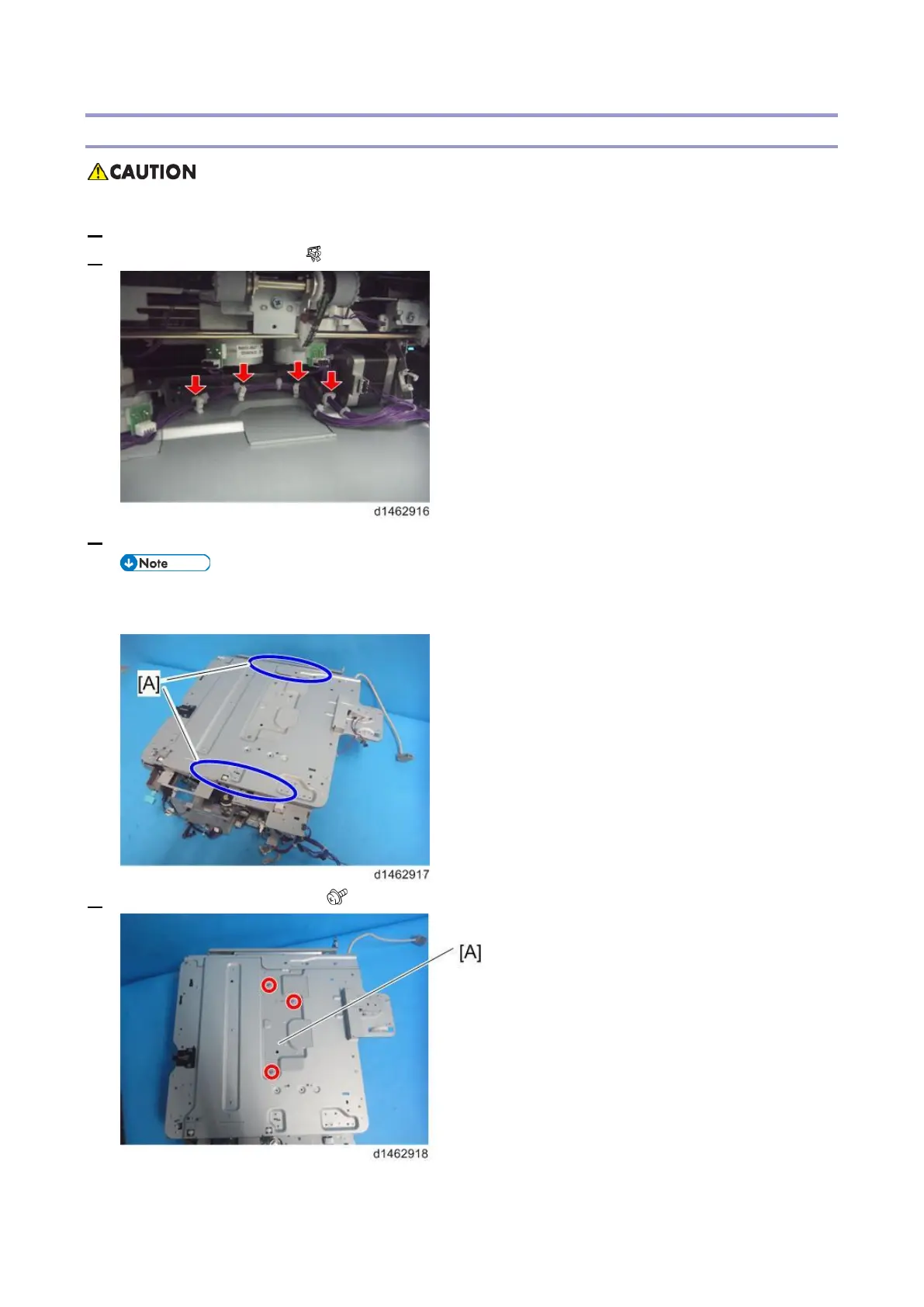

Stapler Retreat Motor (M13)
• When placing the finisher upside down, be careful not to deform the frame.
1. Remove the paper exit cover (Paper Exit Cover).
2. Release the four clamps ( ×4).
3. Place the internal finisher upside down on the table while holding the parts shown below [A].
• Hold the parts [A] shown below to lift the internal finisher. Otherwise, other brackets and
parts may be deformed.
4. Remove the base cover [A] ( ×3).
To Next Page
