2.Replacement and Adjustment
41

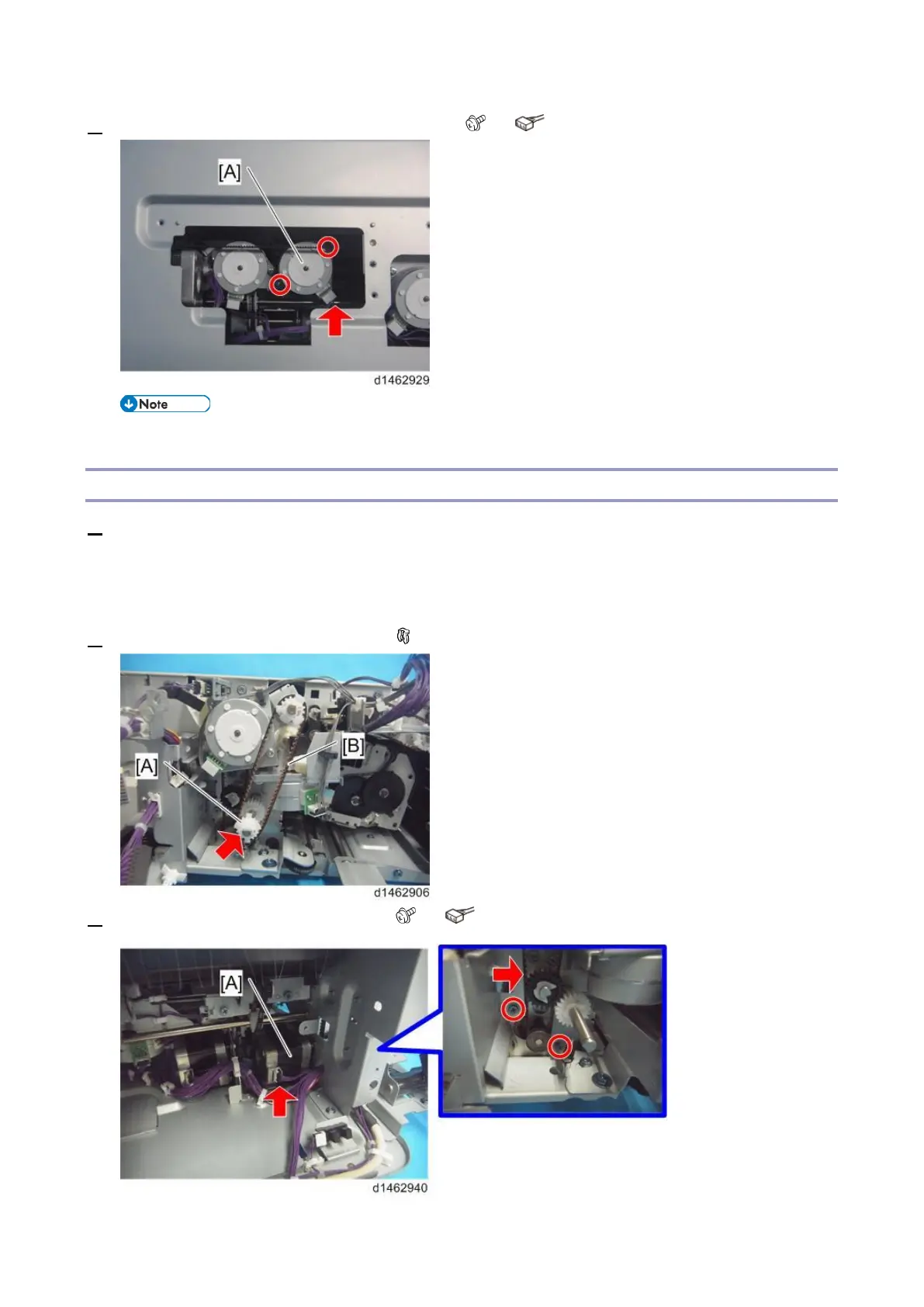

3. Remove the jogger fence motor (rear) (M5) [A] ( ×2, ×1, Timing belt×1).
• During re-assembly, check that the motor pulley has not separated from the timing belt.
Transport Motor (M8)
1. Remove the following parts.
• Paper Exit Cover
• Controller Board (PCB1)
• Finisher Rear Cover
2. Remove the pulley [A], timing belt [B] ( ×1).
3. Remove the transport motor (M8) [A] ( ×2, ×1, Timing belt×1).
