Ricoh SR3250 - Page 13

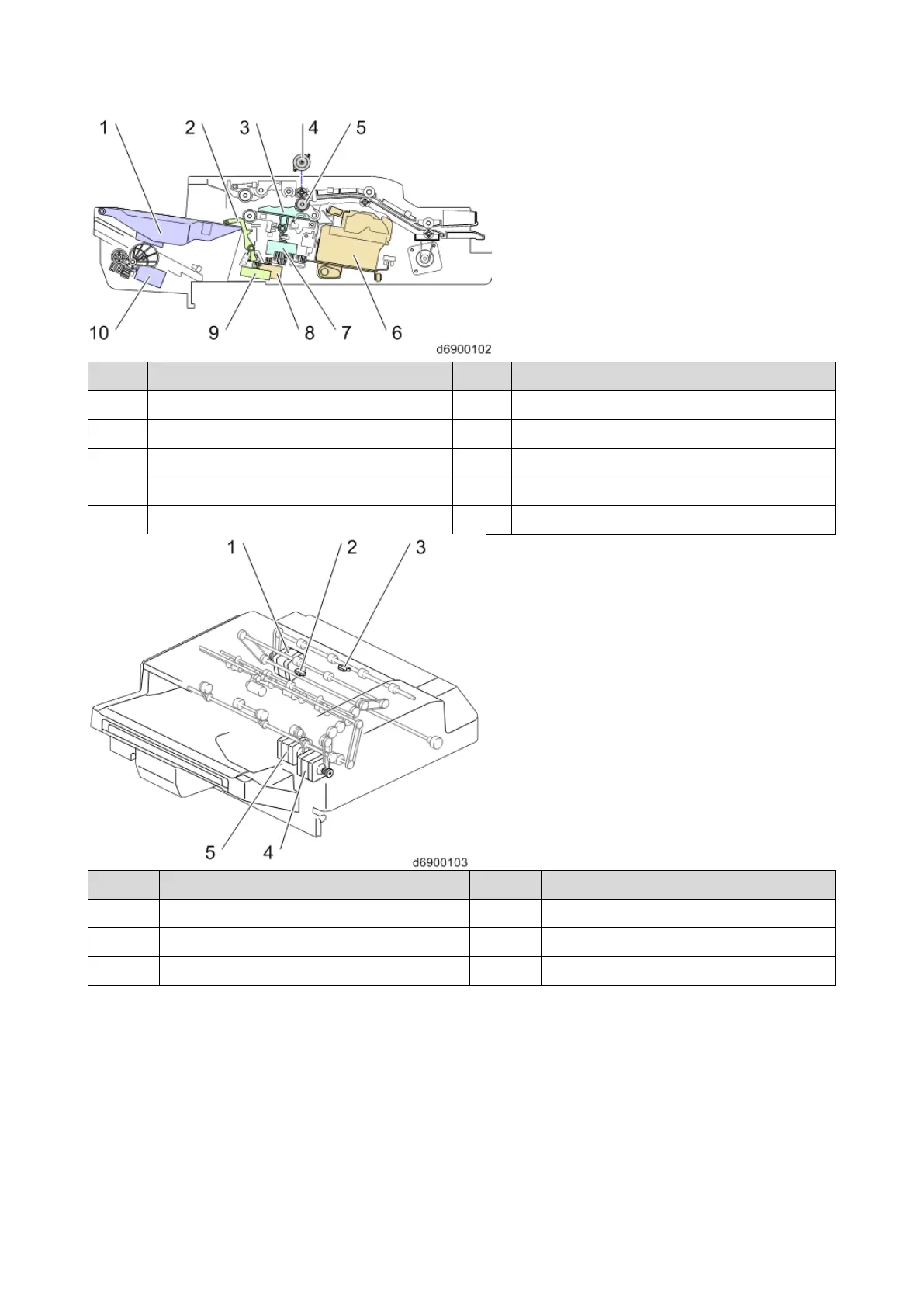

1.Detailed Descriptions
7
No.
Description
No.
Description
1
Paper exit tray
6
Stapler
2
Stack height detection lever
7
Jogger motor
3
Staple tray (jogger)
8
Stapler retreat motor (M13)
4
Shift motor (M11)
9
Stack height lever motor (M6)
5
Shift roller
10
Tray lift motor (M15)
No.
Description
No.
Description
1
Entrance motor (M10)
4
Transport motor (M8)
2
Transport sensor (S13)
5
Paper exit motor (M9)
3
Entrance sensor (S9)
-
-
