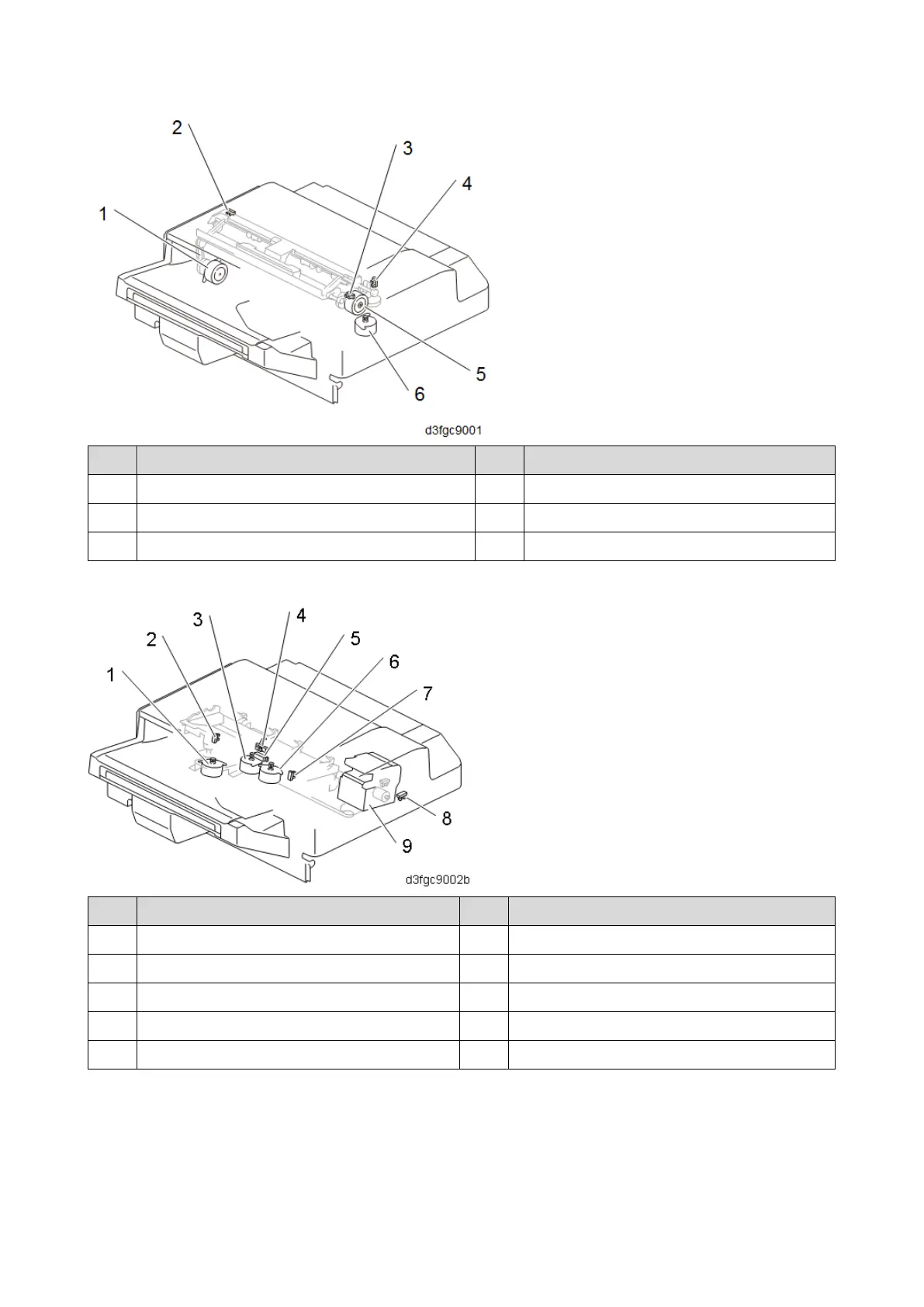

1.Detailed Descriptions
8
No.
Description
No.
Description
1
Positioning roller motor (M14)
4
Shift roller HP sensor (S11)
2
Positioning roller HP sensor (S10)
5
Paper exit guide plate motor (M12)
3
Paper exit guide plate HP sensor (S7)
6
Shift motor (M11)
No.
Description
No.
Description
1
Stapler retreat motor (M13)
6
Jogger fence motor (front) (M4)
2
Jogger fence HP sensor (rear) (S16)
7
Jogger fence HP sensor (front) (S15)
3
Jogger fence motor (rear) (M5)
8
Stapler HP sensor (S22)
4
Paper sensor (S19)
9
Stapler unit
5
Stapler tray jam sensor (S14)
-
-
