1.Detailed Descriptions
44
No.
Name
No.
Name
1
Booklet Jogging Pawl HP Sensor
8
Booklet Trailing Edge Bottom Fence HP
Sensor
2
Booklet Jogging Pawl Movement Motor
9
Booklet Lower Transport Path Stack Sensor
3
Shift Roller drive Motor
10
Bottom Fence
4
Booklet Upper Transport Path Stack
Sensor
11
Jogger Fence
5
Booklet Jogger Motor
12
Booklet Stapler
6
Booklet Jogging HP Sensor
13
Booklet Guide Plate Sensor
7
Booklet Bottom Fence Motor
14
Shift Roller
No.
Name
No.
Name

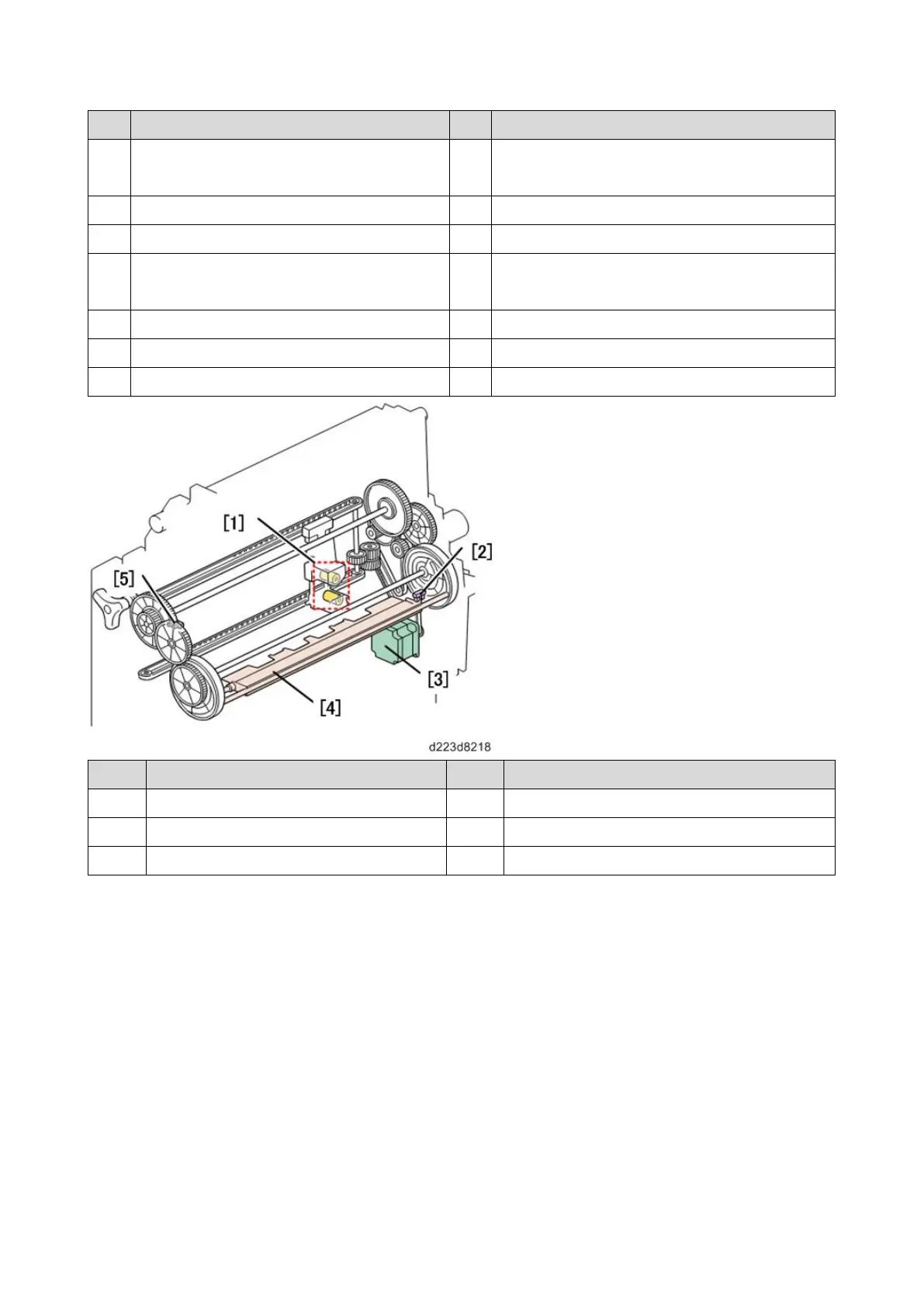

1
Side-to-side Shift Fold Roller
4
Fold Plate
2
Fold Plate HP Sensor (S1)
5
Fold Plate Cam HP Sensor (S9)
3
Press Fold Motor (STM10)
