User‟s Guide for Logic Signal Output Module
1-10

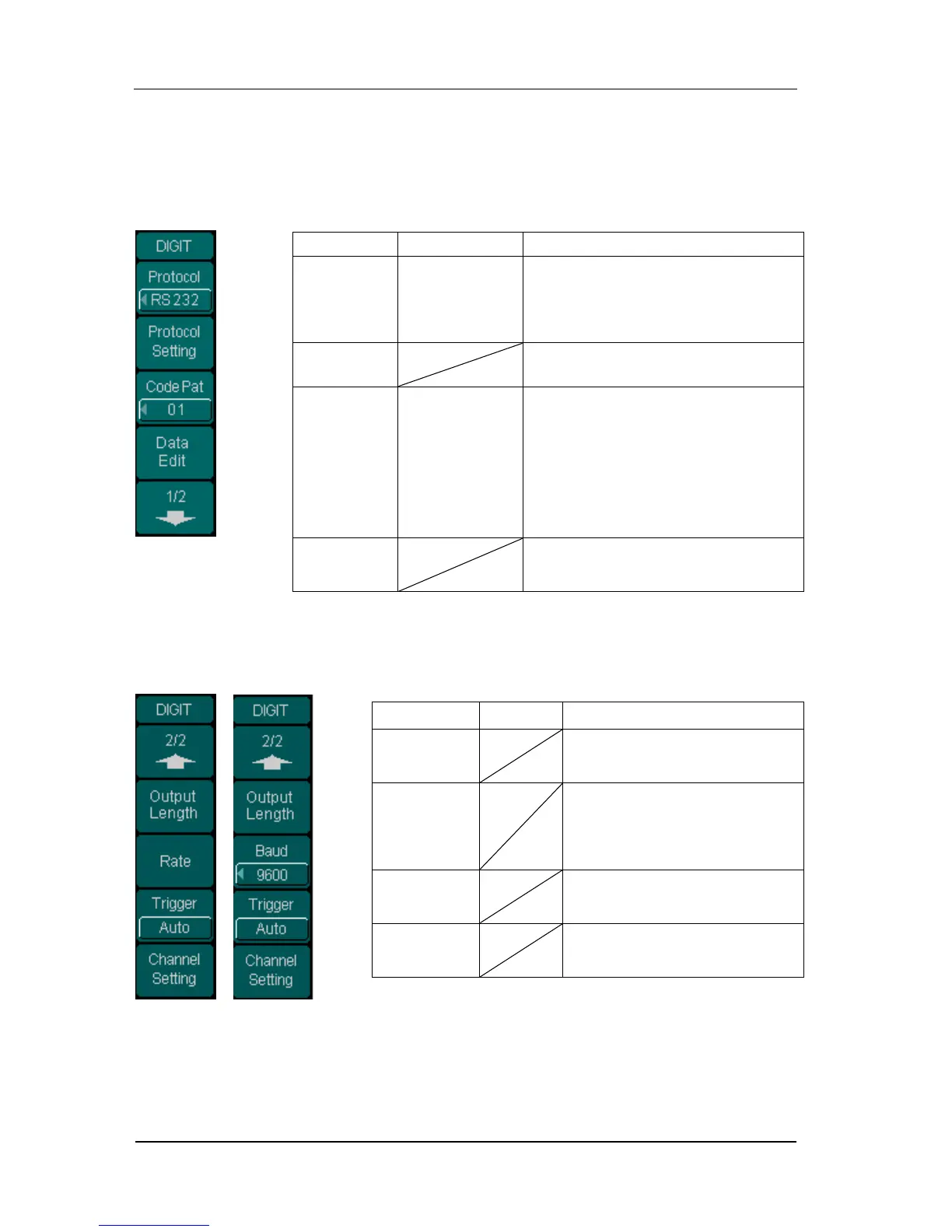

The operation menus and description are shown in the following figures and tables.
Figure 1-8(2) is for SPI、IIC、PO protocol, and Figure 1-8(3) is for RS232 protocol.
Figure 1-8(1) Table 1-1(1) Operation menu description
Figure 1-8(2) Figure 1-8(3) Table 1-1(2) Operation menu description
Menu
Setting
Description
Protocol
RS232
SPI
IIC
PO
To set protocol type, use the
knob to choose the protocol
and press F1 again.
Protocol
Setting
To set the parameters for the
protocol.
Code Pat
ALL0
ALL1
01
8PRBS
16PRBS
32PRBS
User
To set common code pattern
To set user-defined pattern
Data
Edit
A shortcut of editing the output
data.
Menu
Setting
Description
Output
Length
To set the data output
length.
#Rate/
Baud
To set the data transmission
rate.
To set the Baud rate. (In
RS232 protocol)
Trigger
To display the trigger mode.
Channel
Setting
To configure the output
channel.
