User‟s Guide for Logic Signal Output Module
2-3
To Set RS232 Protocol
Press Arb  Edit Digital W  Protocol. Use the knob to choose “RS232”. Press
F1 again to select “RS232” as shown in Figure 2-1.

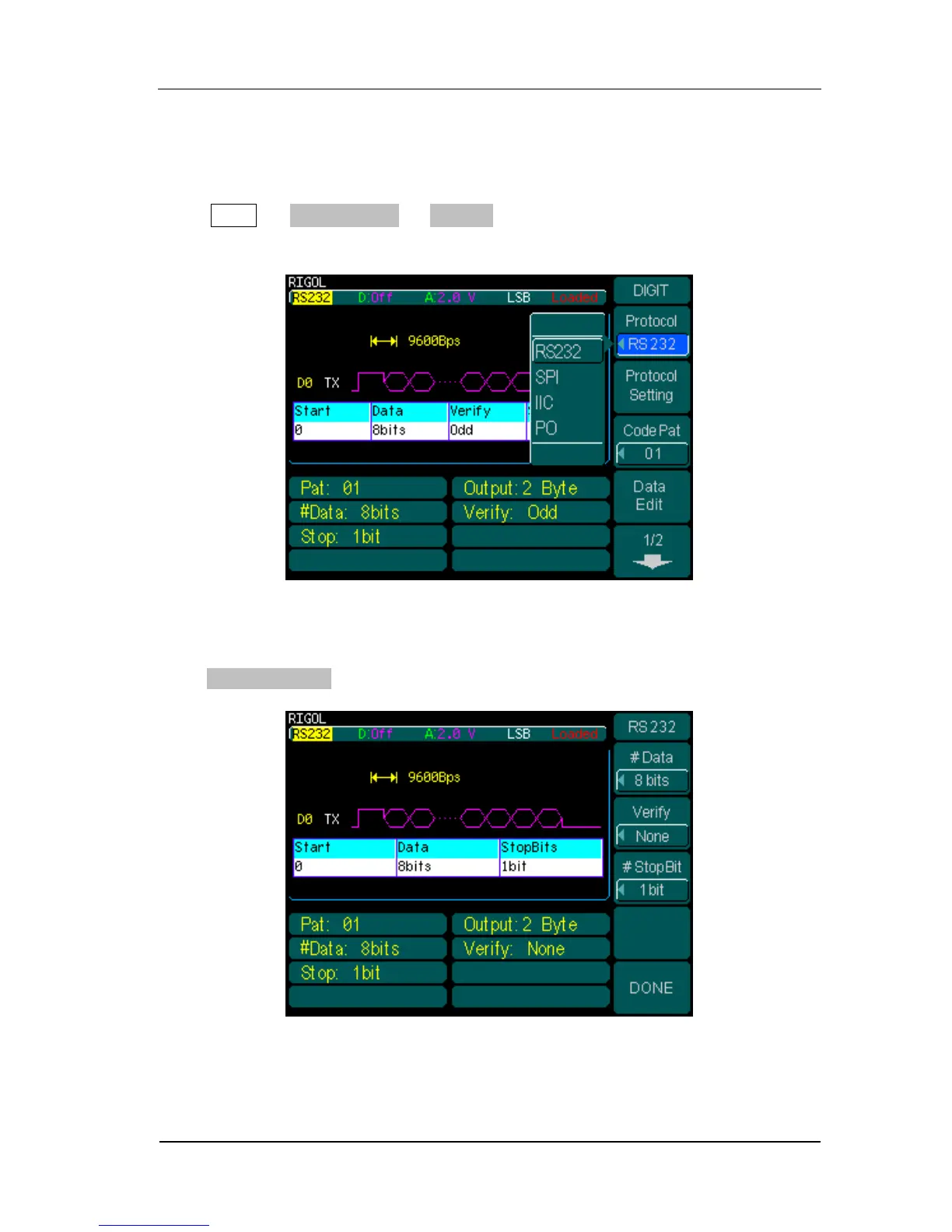

Figure 2-1 Choose RS232 protocol
Press Protocol Setting, to enter the protocol setting menu as shown in Figure 2-2.
Figure 2-2 RS232 protocol setting interface
