User‟s Guide for Logic Signal Output Module
Communication Protocol Interface
Press Arb Edit Digital W, to enter the communication protocol interface as
shown in Figure 1-7. The upper-left is Status bar, from left to right are: current
protocol, digital voltage, analog voltage, data transmission manner and
configuration state. Below the Status bar is a Figure shape of the protocol; consists
of data transmission rate, configuration of data-line and clock-line; then the
Protocol format. Below the Protocol format is the basic Parameter settings. The
right side of the screen is the Operation Menus.

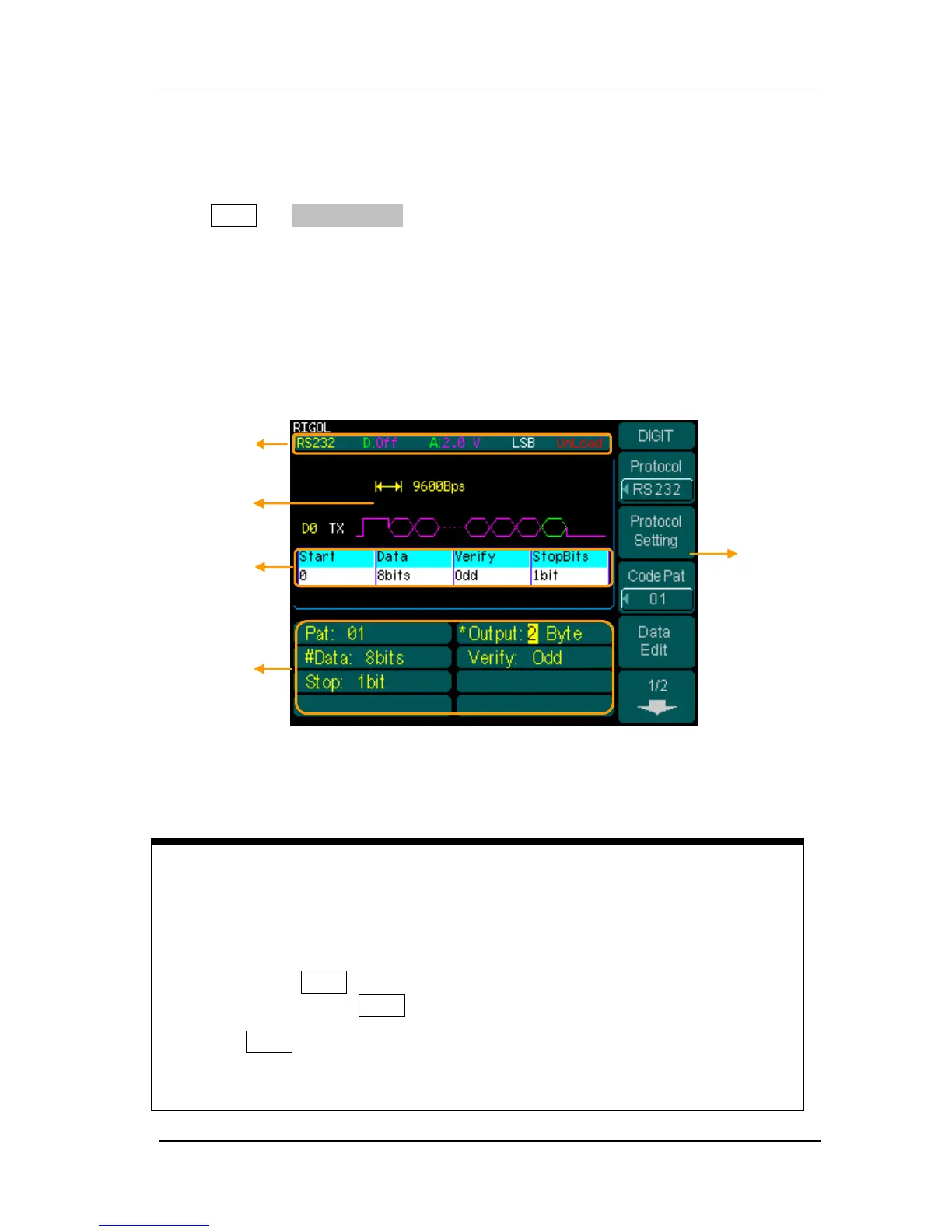

Figure 1-7 Communication protocol interface
PROMPT
“Loaded” indicates that the current output is the current configuration,
while “Unload” indicates that the current output is the last configuration.
Parameters marked with “*” indicate that they have been modified.
The blinking Arb button indicates that the modified setting has not been
implemented, press Arb again to execute.
Press Arb to complete change of the configuration, or switch to arbitrary
wave mode if no parameter is changed.
