User data editor provides abundant data outputs. A DG3000 has a 256k (1k=1024)
Bytes of data space. Arbitrary digital waveforms can be generated by editing the
data.
Press Arb  Edit Digital W  Data Edit, to enter the “DATAEDIT” interface as
shown in Figure 1-9. The interface is divided into three parts: the upper-left side is
the Data space, below the Data space is the Input area. The right side of the
screen is the Operation Menus.

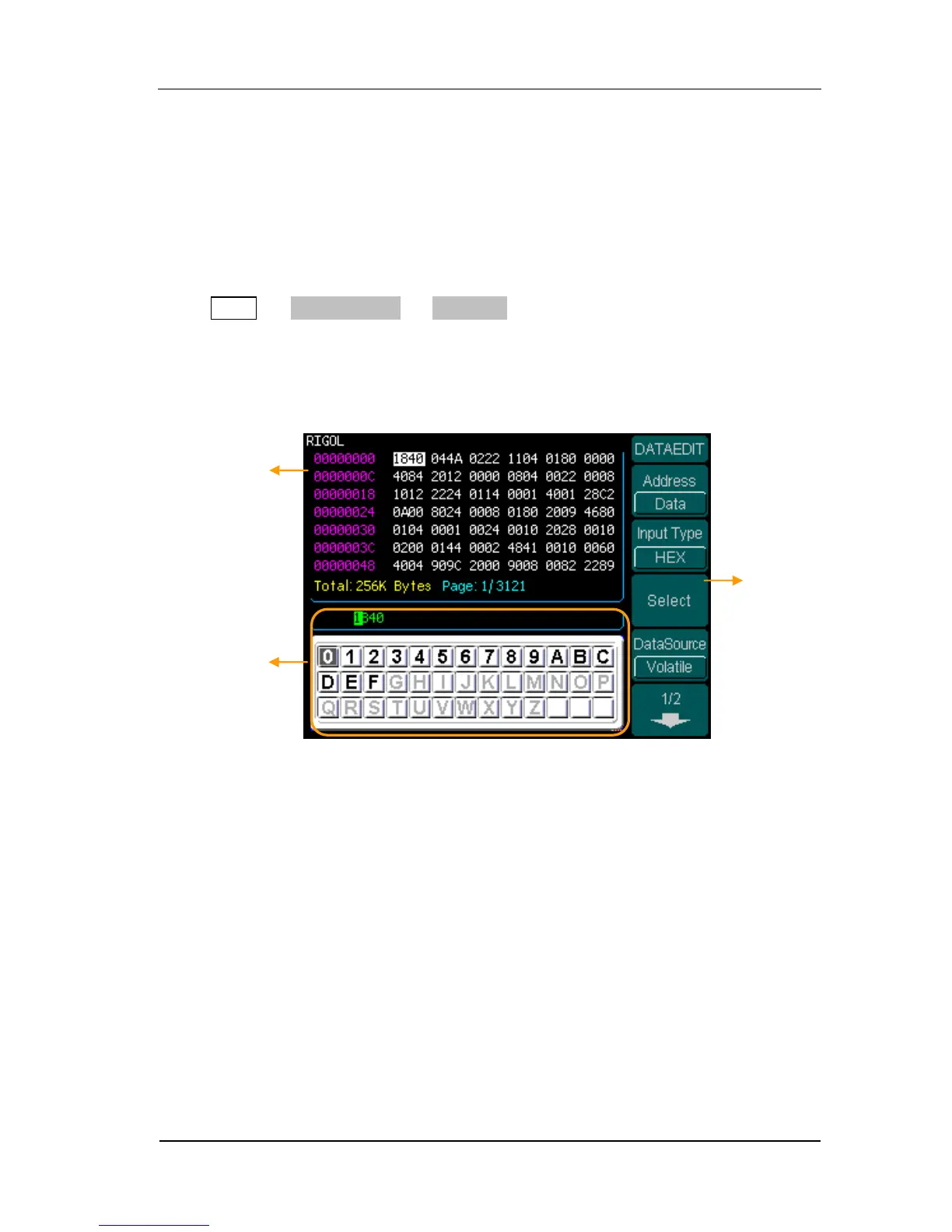

Figure 1-9 User data editing interface
Data space
Operation
Menus
Input area
