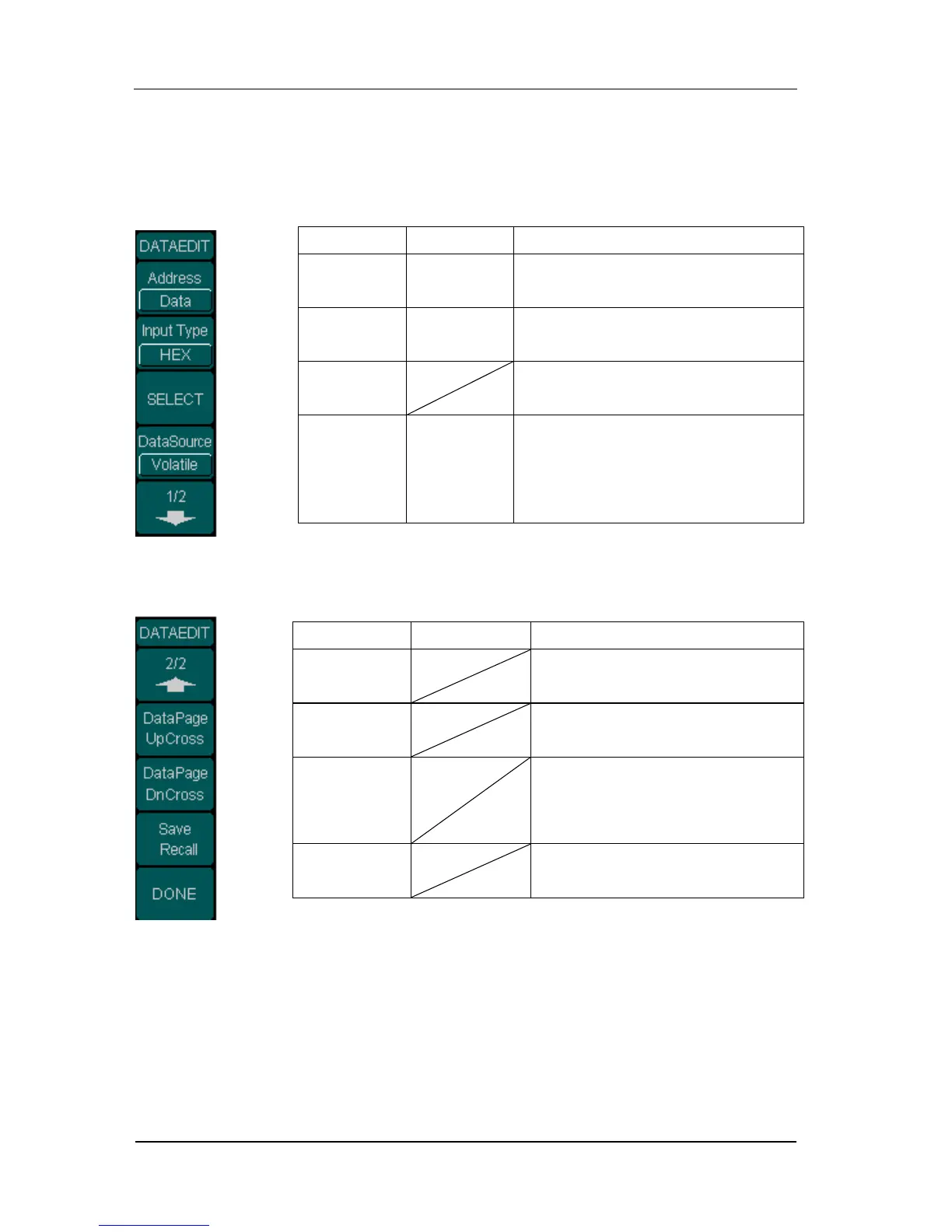

The DATAEDIT operation menus and description are shown in the following figures
and tables.
Figure 1-10(1) Table 1-2(1) Operation menu description
Figure 1-10(2) Table 1-2(2) Operation menu description
Menu
Setting
Description
Address/
Data
Address
Data
To edit the address or data.
Input Type
HEX
BIN
To choose hexadecimal or binary
form to input user data.
SELECT
Press this menu to confirm the
selecting.
DataSource
Volatile
ArbWave1
ArbWave2
ArbWave3
ArbWave4
Data stored in volatile space.
Data stored in non-volatile space.
Menu
Setting
Description
DataPage
UpCross
Turn to the last page.
DataPage
DnCross
Turn to the next page.
Save
Recall
Store user data in non-volatile
memory or U disk.
Recall data from non-volatile
memory or U disk to edit.
DONE
Store all the changes and return
the previous level menu.
