Edit Stored Digital Waveform

The currently editing data is in the volatile memory, and the stored data in the

non-volatile memory can be imported as shown in Figure 2-17.

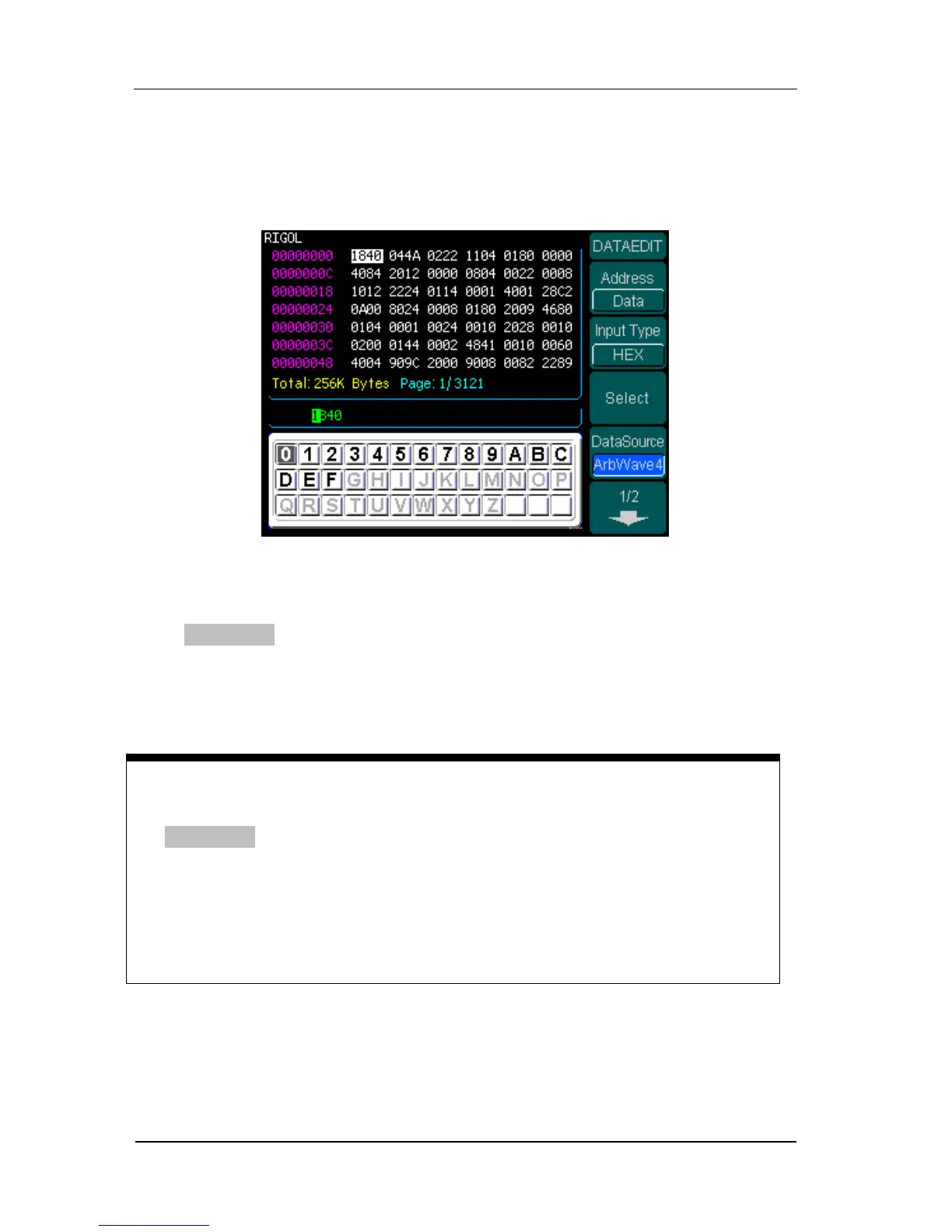

Figure 2-17 Select data source

Press DataSource. Repeat pressing this key or use the knob to select the storage

location of digital waveform: Volatile 、 ArbWave1 、 ArbWave2 、 ArbWave3 or

ArbWave4.

PROMPT

 Only the location which has stored digital waveform will appear in the

DataSource option.

 The currently editing data is always located in the volatile memory. When

choosing data from the non-volatile memories: ArbWave1、ArbWave2、

ArbWave3 or ArbWave4; data will be copied to volatile memory for editing,

and those stored in non-volatile will not be changed.
