User‟s Guide for Logic Signal Output Module
2-41
Channel Setting for PO Protocol
Press Arb  Edit Digital W  PO  Channel Setting, to enter the interface as
shown in Figure 2-44.

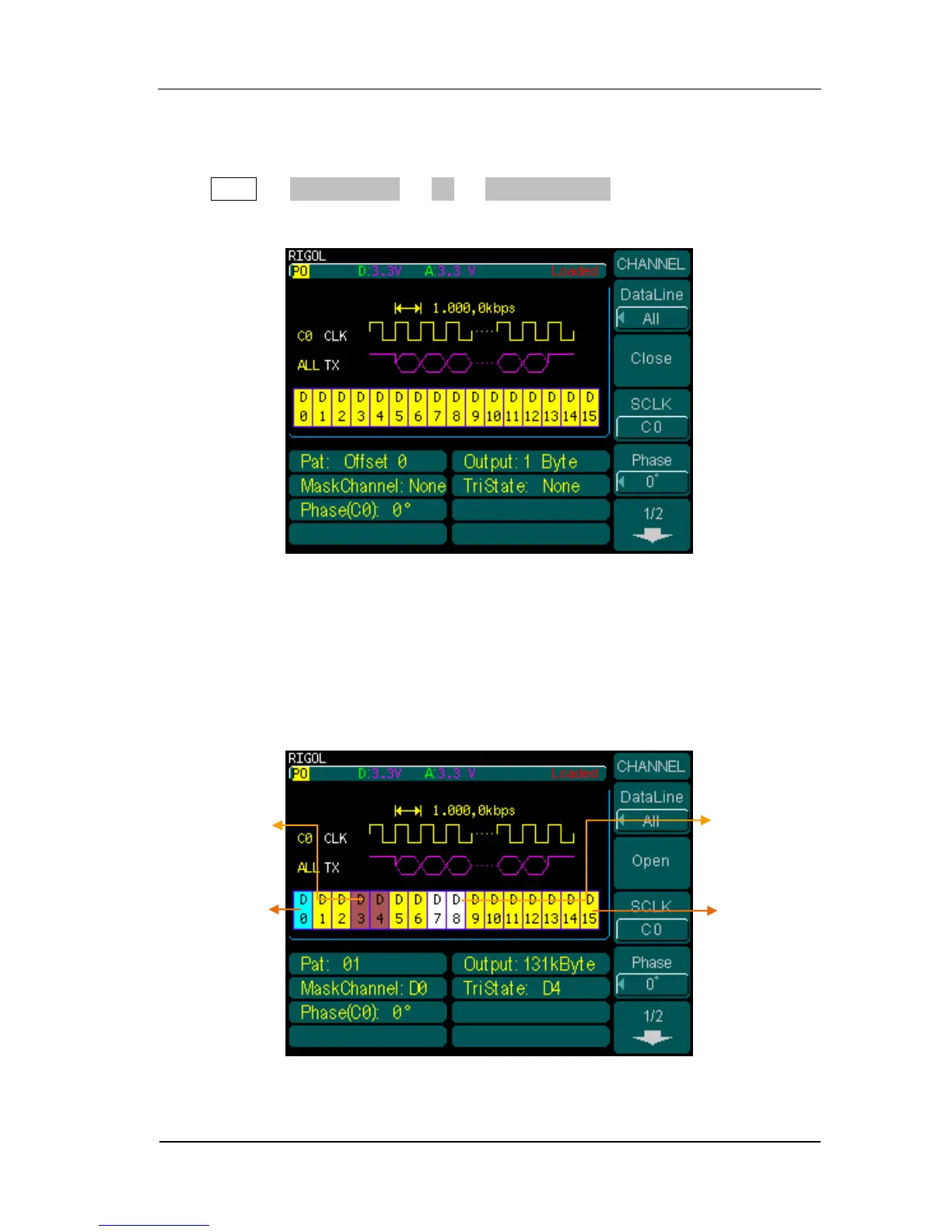

Figure 2-44 Channel setting of PO
PO is a parallel protocol. Users can choose multiple channels and set their output
status (ON or OFF). As introduced in page 2-9 "To Set PO Protocol”, the protocol
can set Mask channel and Tri-State channel. These channels can be identified with
different colors as the following figure shows.
Figure 2-45 Channel marks
Bolarious:
Tri-State Channel
Azury:
Mask Channel
White:
Do not output
Yellow:
Output
