User‟s Guide for Logic Signal Output Module
2-40

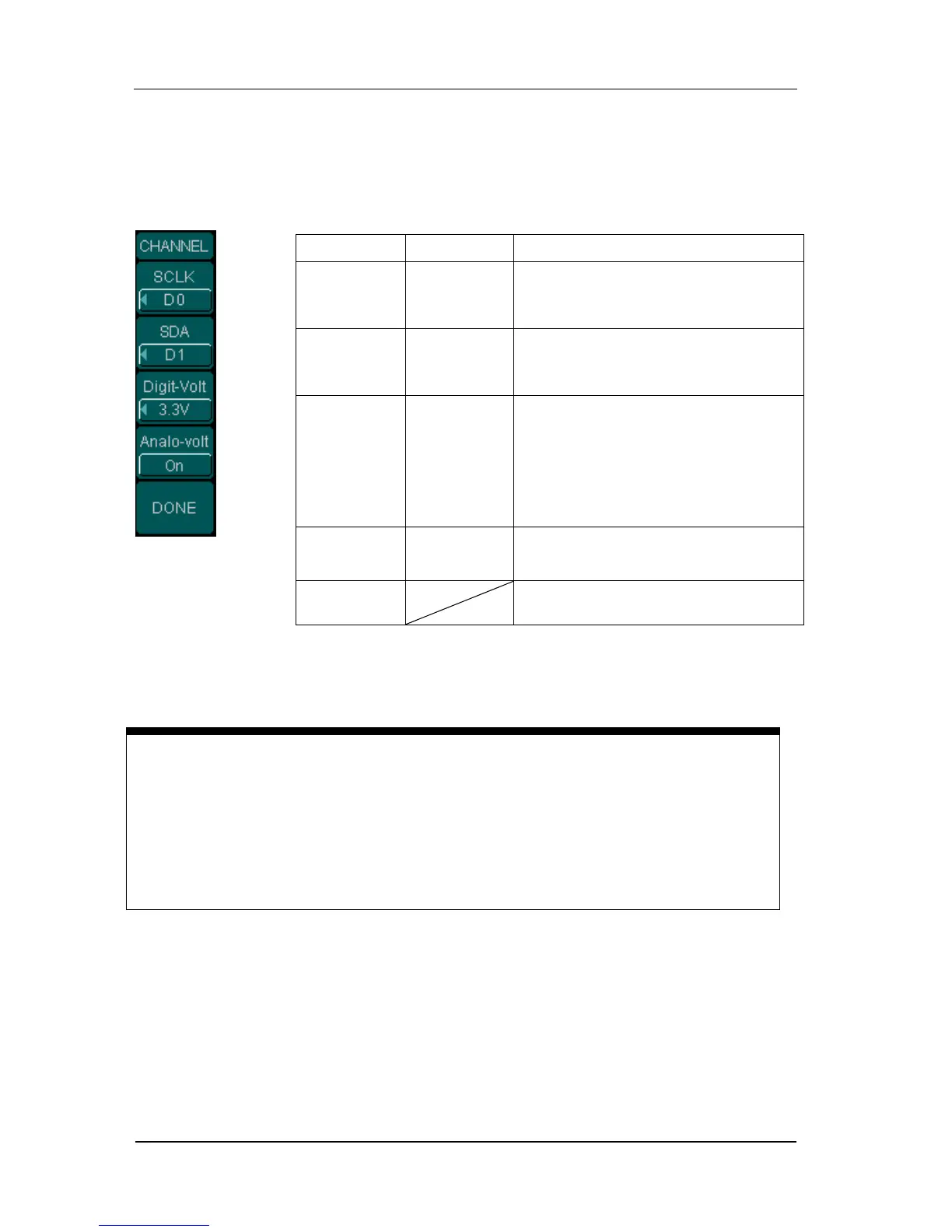

The Channel setting menu of IIC protocol and operation description are shown in
the following figure and table.
Figure 2-43 Table 2-11 Operation menu description
NOTE
When setting SCLK, SDA, CS and TFS, selected D0～D15 cannot be double set.
For example, SCLK has set to be D0; SDA cannot be assigned to D0, unless SCLK
is being set to another line.
Menu
Setting
Description
SCLK
D0
︰
D15
Select clock line of IIC.
SDA
D0
︰
D15
Select data line of IIC.
Digit-Volt
1.8V
2.5V
3.3V
4.0V
User
Off
Set digital channels voltage. The
default is 3.3V.
User-defined mode(1.4V～4.2V)
Turn off digital voltage output.
Analo-Volt
On
Off
Set analog channels voltage.
DONE
Store all the changes and return
the previous level menu.
