Rigol DG3000 Series

RIGOL
© 2008 RIGOL Technologies, Inc.
User‟s Guide for Logic Signal Output Module
2-4

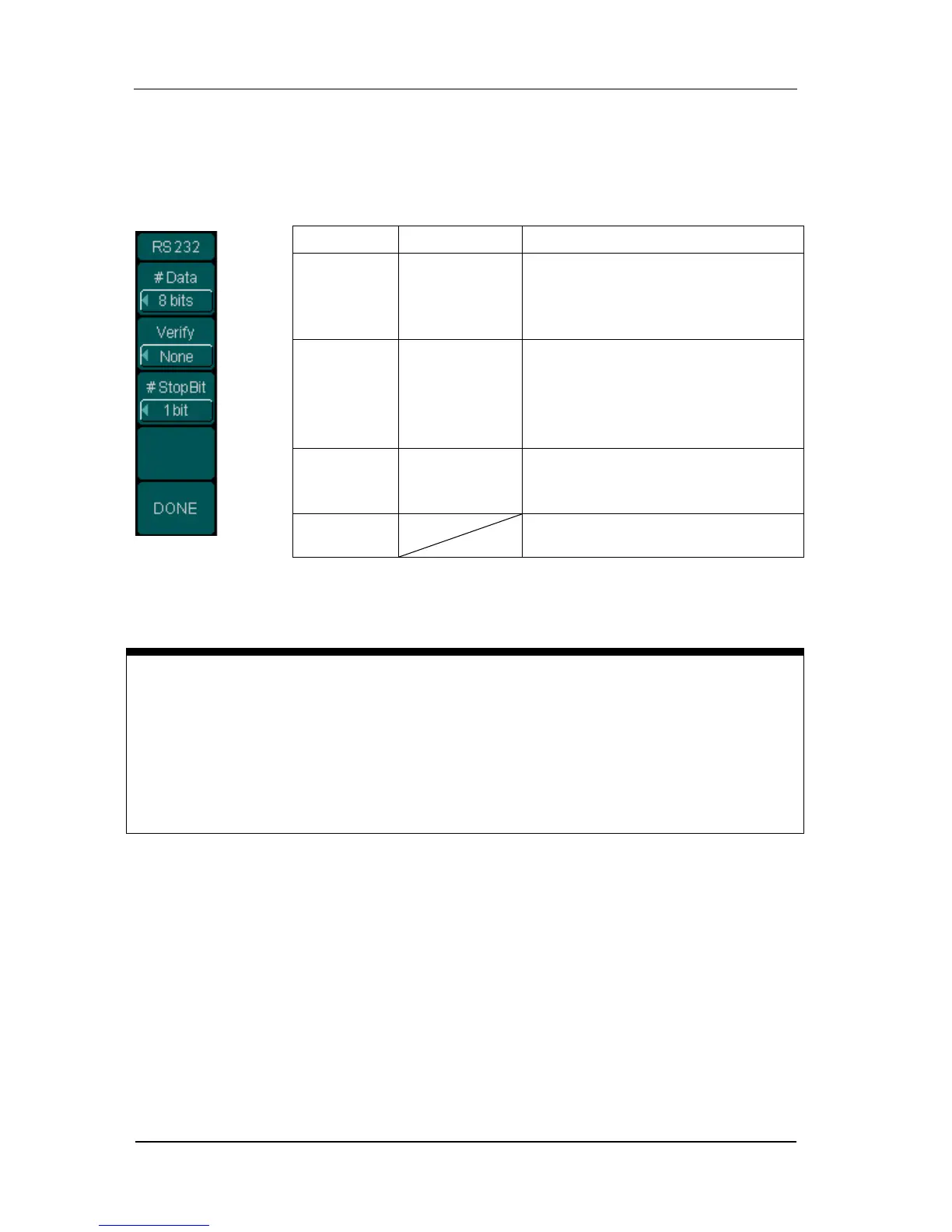

The RS232 protocol setting menu and operation description are shown in the
following figure and table.
Figure 2-3 Table 2-1 Operation menu description
Terms Explanation
To make the setting of “Verify” more flexible for users, two “verify” types: “Fixed0”
and “Fixed1” are included.
 Fixed0: Always set the “verify” bit to “0”.
 Fixed1: Always set the “verify” bit to “1”.
Menu
Setting
Description
#Data
5bits
6bits
7bits
8bits
To set transmission data length
per frame.
Verify
None
Odd
Even
Fixed0
Fixed1
None
Odd
Even
Fixed0
Fixed1
#StopBit
1bit
1.5bits
2bits
To set the stop bit of the
character frame.
DONE
Store all the changes and return
the previous level menu.
