User‟s Guide for Logic Signal Output Module
2-32

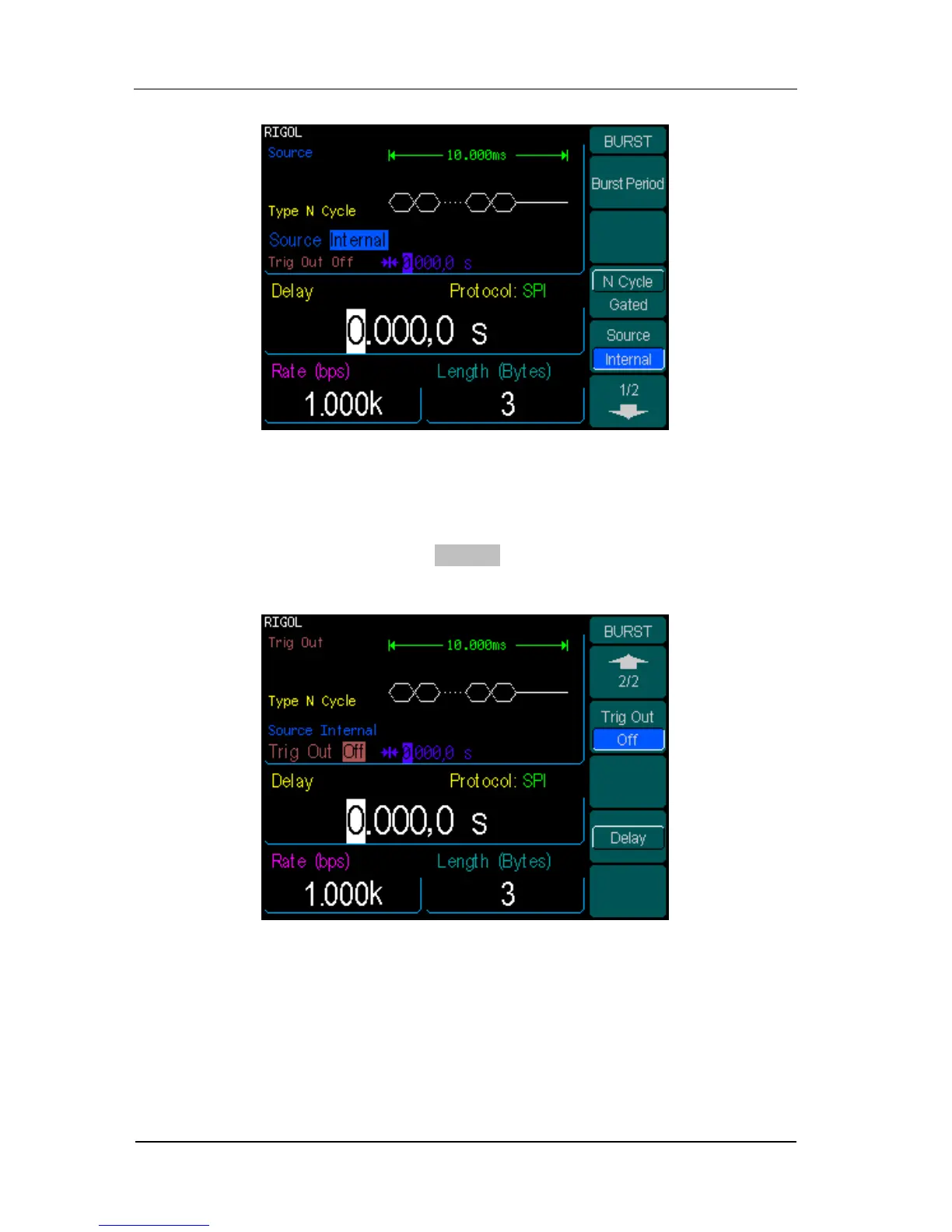

Figure 2-32 Choose internal source
Press F5, to enter the second page of “BURST” as shown in Figure 2-33. Select a
rising or a falling edge through the Trig Out option, or you can choose “Off” to
disable the trigger output.
Figure 2-33 Set the “trig out” signal
