User‟s Guide for Logic Signal Output Module
2-38

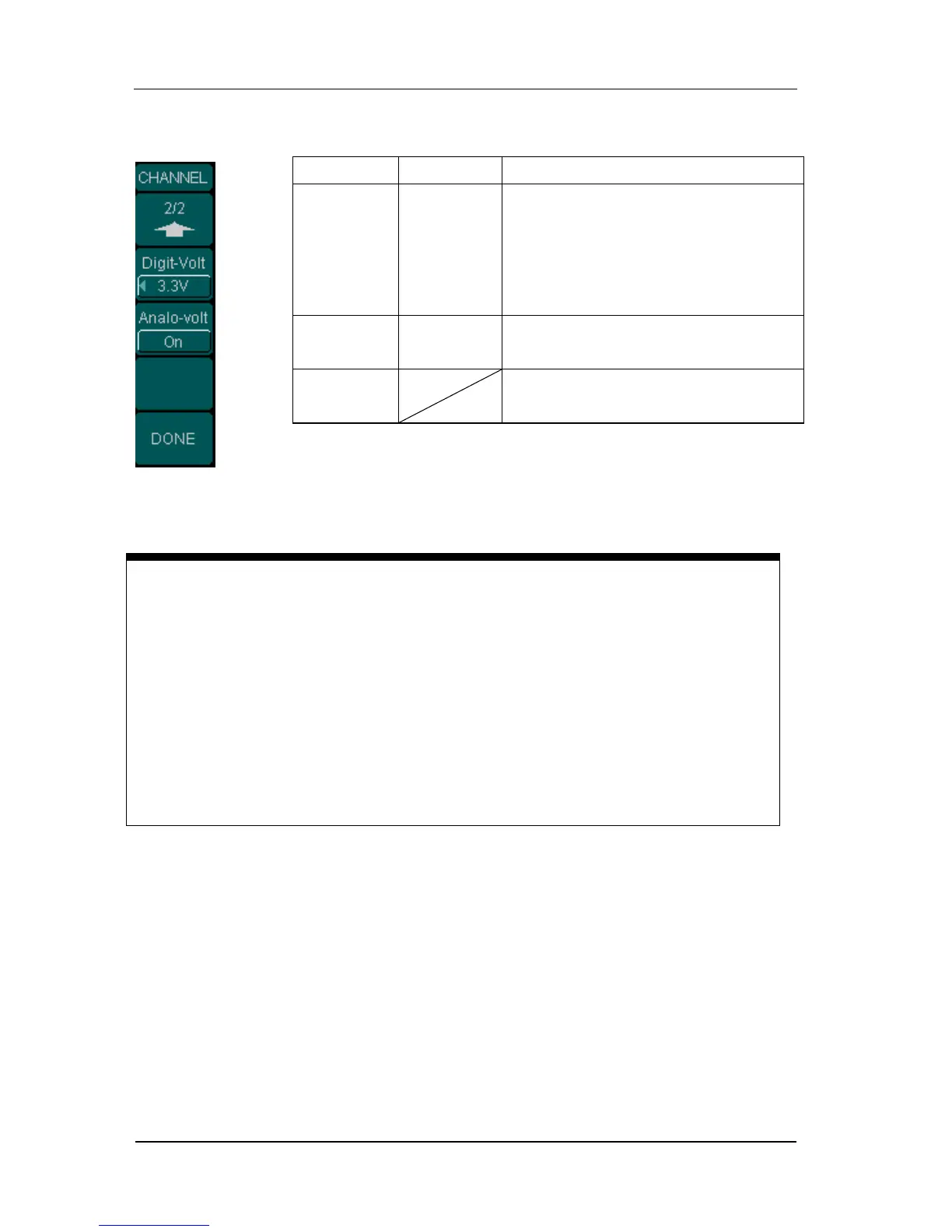

Figure 2-41(2) Table 2-10(2) Operation menu description
NOTE
 When setting SCLK, SDA, CS and TFS, selected D0～D15 cannot be double
set. For example, SCLK has set to be D0; SDA cannot be assigned to D0,
unless SCLK being set to another line.
 SPI, IIC, PO protocols provide both analog and digital channel voltage
output. Users can configure them individually.
 When analog voltage is higher than 4.2V, digital voltage will automatically
adjust to be 3/8 of analog voltage.
Menu
Setting
Description
Digit-Volt
1.8V
2.5V
3.3V
4.0V
User
Off
Set digital channels voltage. The
default is 3.3V.
User-defined mode (1.4V～4.2V)
Turn off digital voltage output.
Analo-Volt
On
Off
Set analog channels voltage.
DONE
Store all the changes and return
the previous level menu.
