9. Press Channel Setting, for the menu of channel settings.
1) Press SCLK; use the knob to choose “D0”. Press the softkey again to
select “D0”.
2) Press SDA; use the knob to choose “D2”. Press the softkey again to select
“D2”.
3) Press CS; use the knob to choose “D1”. Press the softkey again to select
“D1”.
4) Press TFS; use the knob to choose “D3”. Press the softkey again to select
“D3”.
5) Press F5 to go to the next page.
6) Press Digit-Volt; use the knob to choose “3.3V”. Press the softkey again to
select “3.3V”. Please observe that the softkey Analo-volt is “ON” and has
been automatically set to be 3.3V.
7) Press DONE to complete the channel settings.
10. Press the blinking button Arb . All modified parameters (denoted with “*”)
will be implemented. The “*” sign will disappear, and the configuration status
will change from “UnLoad” to “Loaded”.

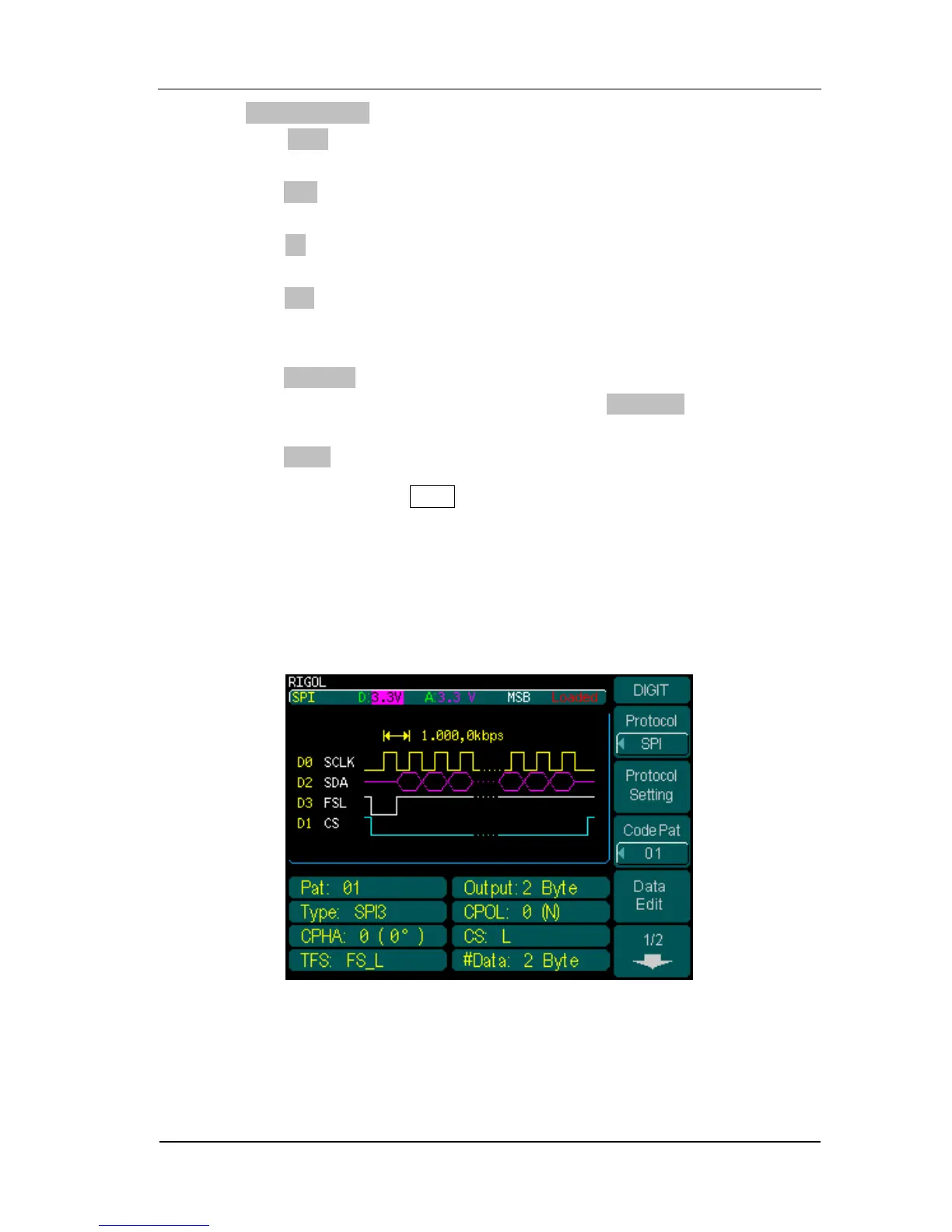

After all the above steps are finished, the screen display will be shown as in Figure
3-2.
Figure 3-2 SPI protocol output
