User‟s Guide for Logic Signal Output Module
2) Press SDA, and use the knob to choose “D1”. Press the softkey again to
select “D1”.
3) Press Digit-Volt, and use the knob to choose “3.3V”. Press the softkey
again to select “3.3V”. Please observe the moment you will see the
softkey Analo-volt is “ON” and has been automatically set to be 3.3V.
4) Press DONE to complete the channel settings.
10. Press the blinking button Arb . All modified parameters (denoted with “*”)
will be implemented. The “*” sign will disappear, and the configuration status
will change from “UnLoad” to “Loaded”.

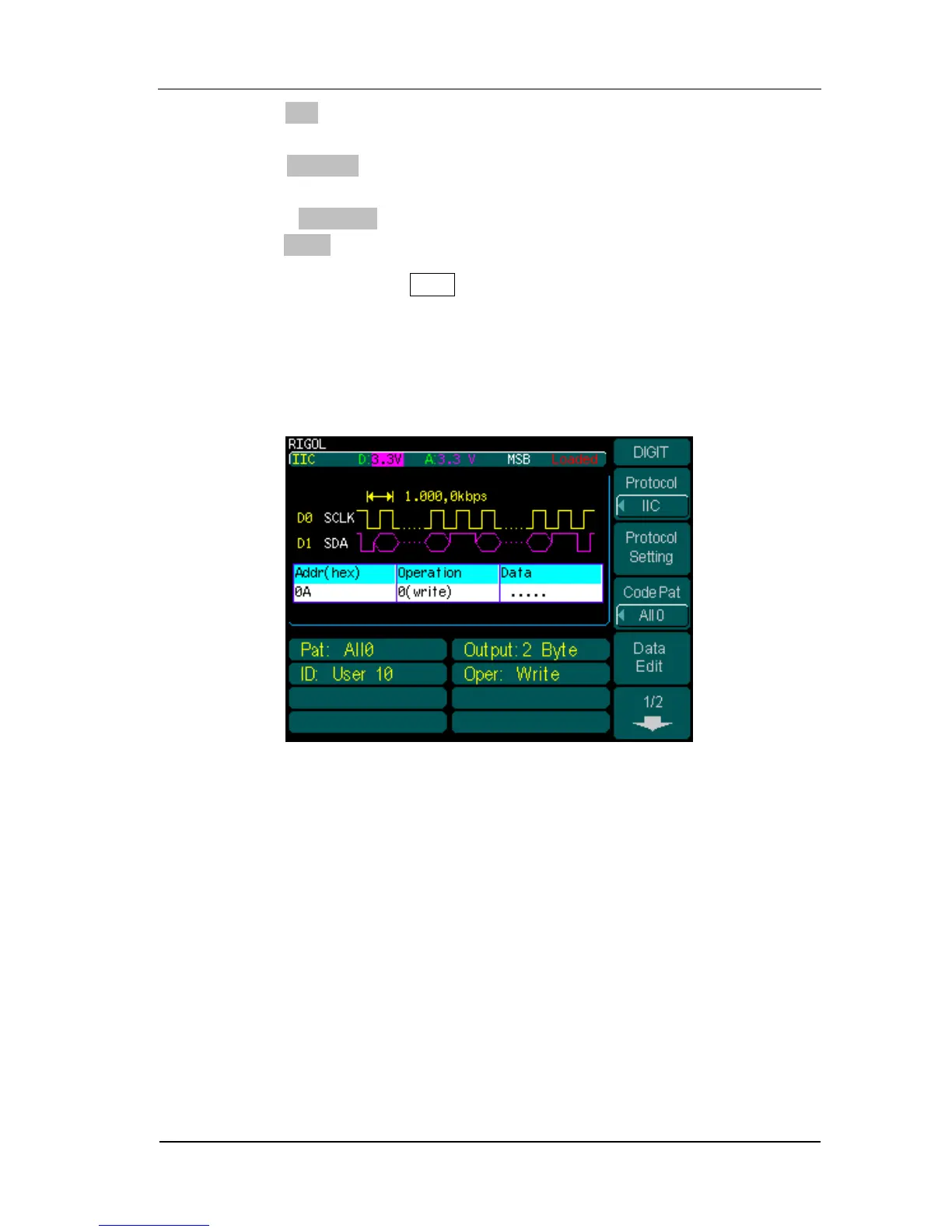

After all the above steps are finished, the screen display will be shown as in Figure
3-3.
Figure 3-3 IIC protocol output
