User‟s Guide for Logic Signal Output Module
3) Press SCLK, and use the softkey or the knob to select “C1”.
4) Press Phase, and use the knob to choose “90°”. Press the softkey again
to set the phase to be 90 degree.
5) Press F5 to go to the next page.
6) Press Digit-Volt, and use the knob to choose “Off”. Press the softkey
again to select “Off”.
7) Press Analo-volt, and use the keyboard to input and “1.8” and choose the
unit of “V” to set the analog voltage to 1.8V.
8) Press DONE to complete the channel settings.
10. Press the blinking button Arb . All modified parameters (denoted with “*”)
will be implemented. The “*” sign will disappear, and the configuration status
will change from “UnLoad” to “Loaded”.
After all the above steps are finished, the screen display will be shown as inin
Figure 3-4.

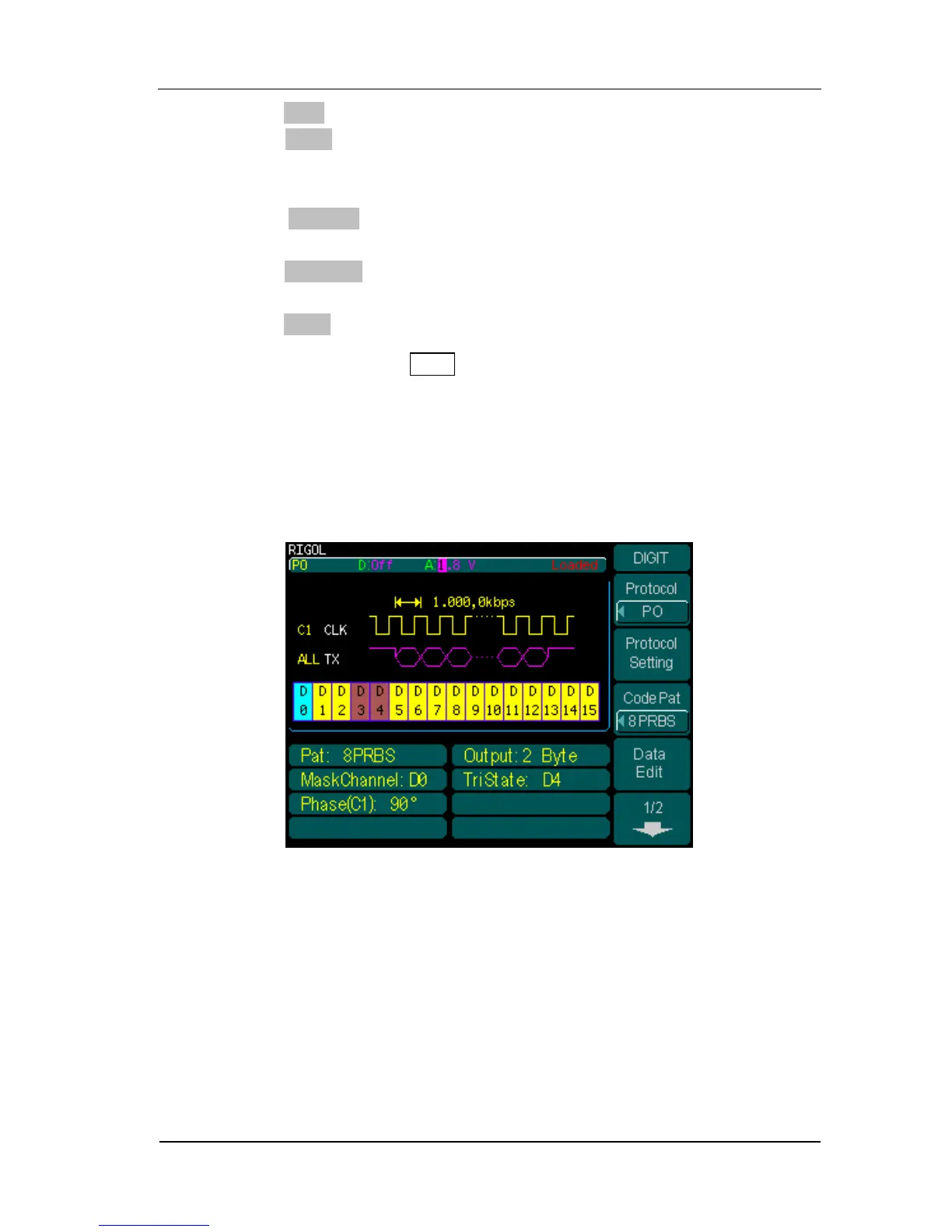

Figure 3-4 PO protocol output
