User’s Guide for DS1000 Series

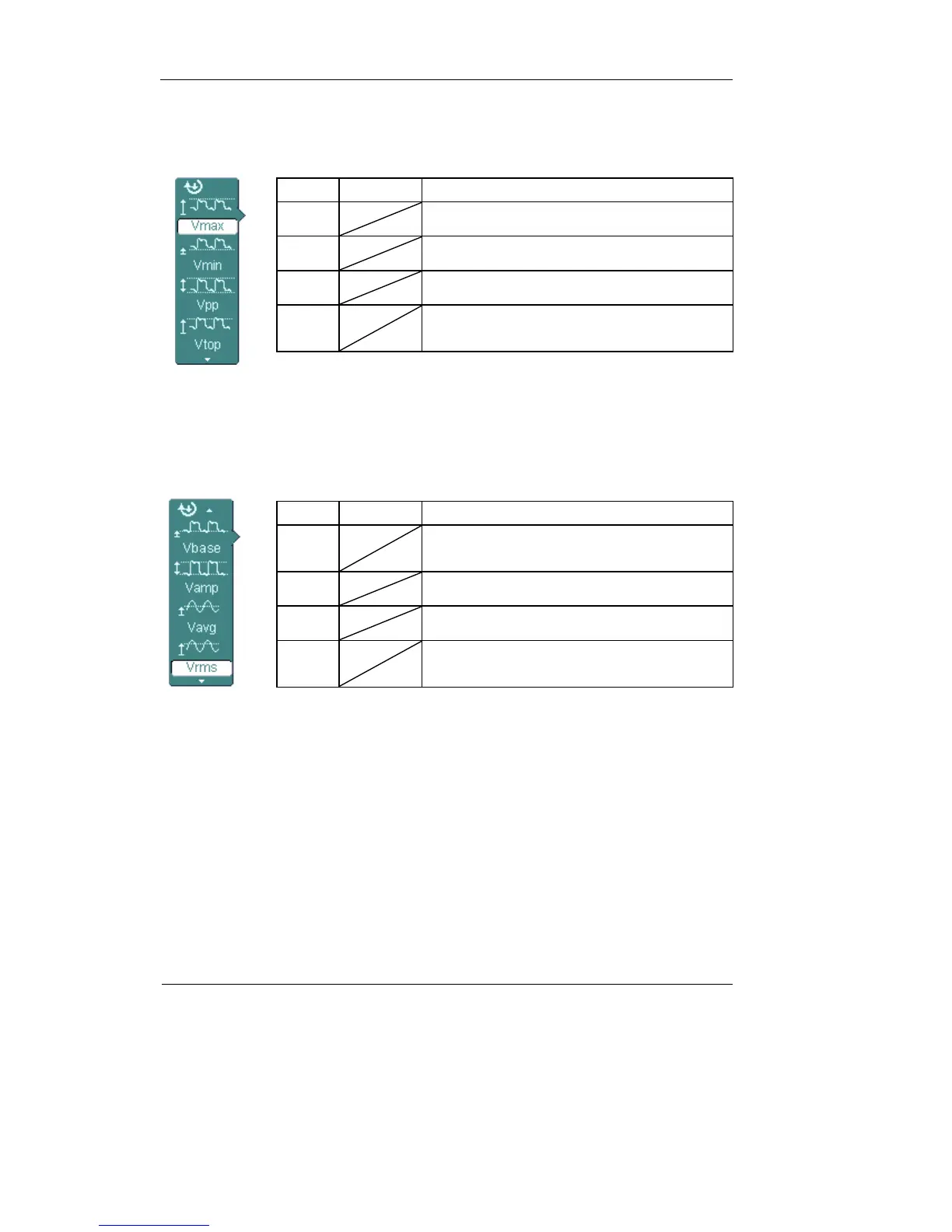

Page 1 for Voltage Measurements
Figure 2-110 Table 2-73
Menu Settings Comments
Vmax Measure maximum voltage of a waveform
Vmin Measure minimum voltage of a waveform
Vpp Measure Peak-to-Peak Voltage
Vtop
Measure a flat top voltage of a square
waveform
Page 2 for voltage measurements
Table 2-74
Menu Settings Comments
Vbase
Measure a flat base voltage of a square
waveform
Vamp Measure voltage between Vtop and Vbase
Vavg Measure average voltage of a waveform
Vrms
Measure Root Mean Square Voltage of a
waveform
Figure 2-111
