User’s Guide for DS1000 Series

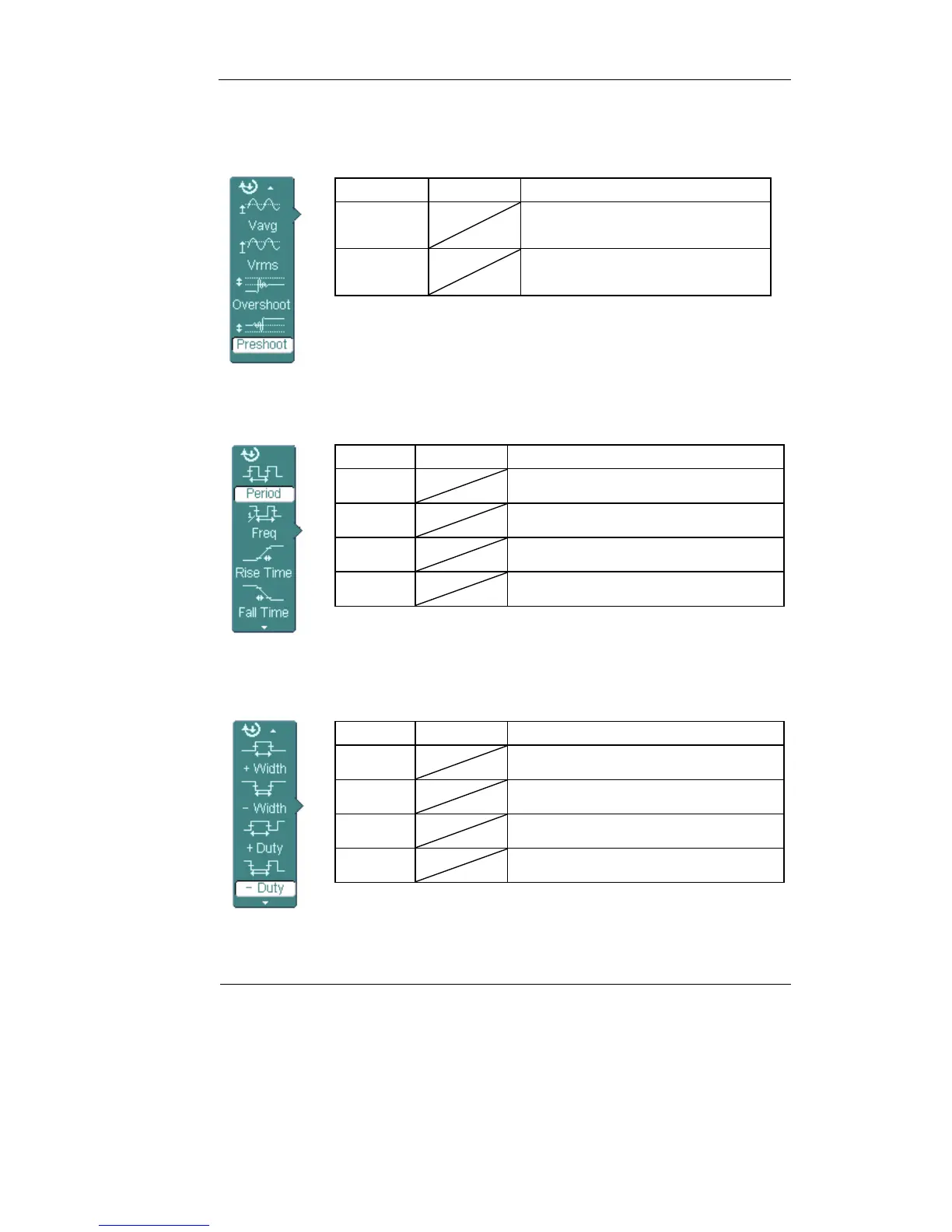

Page 3 for Voltage Measurements
Figure 2-112 Table 2-75
Menu Settings Comments
Overshoot
Measure overshoot in percentage
of an edge
Preshoot
Measure preshoot in percentage of
an edge
Page 1 for Time Measurements
Figure 2-113 Table 2-76
Menu Settings Comments
Period Measure Period of a waveform
Freq Measure Frequency of a waveform
Rise time Measure Rise Time of a rising edge
Fall time Measure Fall Time of a falling edge
Page 2 for Time Measurements
Figure 2-114 Table 2-77
Menu Settings Comments
+Width Measure +Pulse Width of a pulse wave
-Width Measure –Pulse Width of a pulse wave
+Duty Measure +Duty Cycle of a pulse wave
-Duty Measure –Duty Cycle of a pulse wave
To Next Page
