User’s Guide for DS1000 Series
Page 3 for Time Measurements

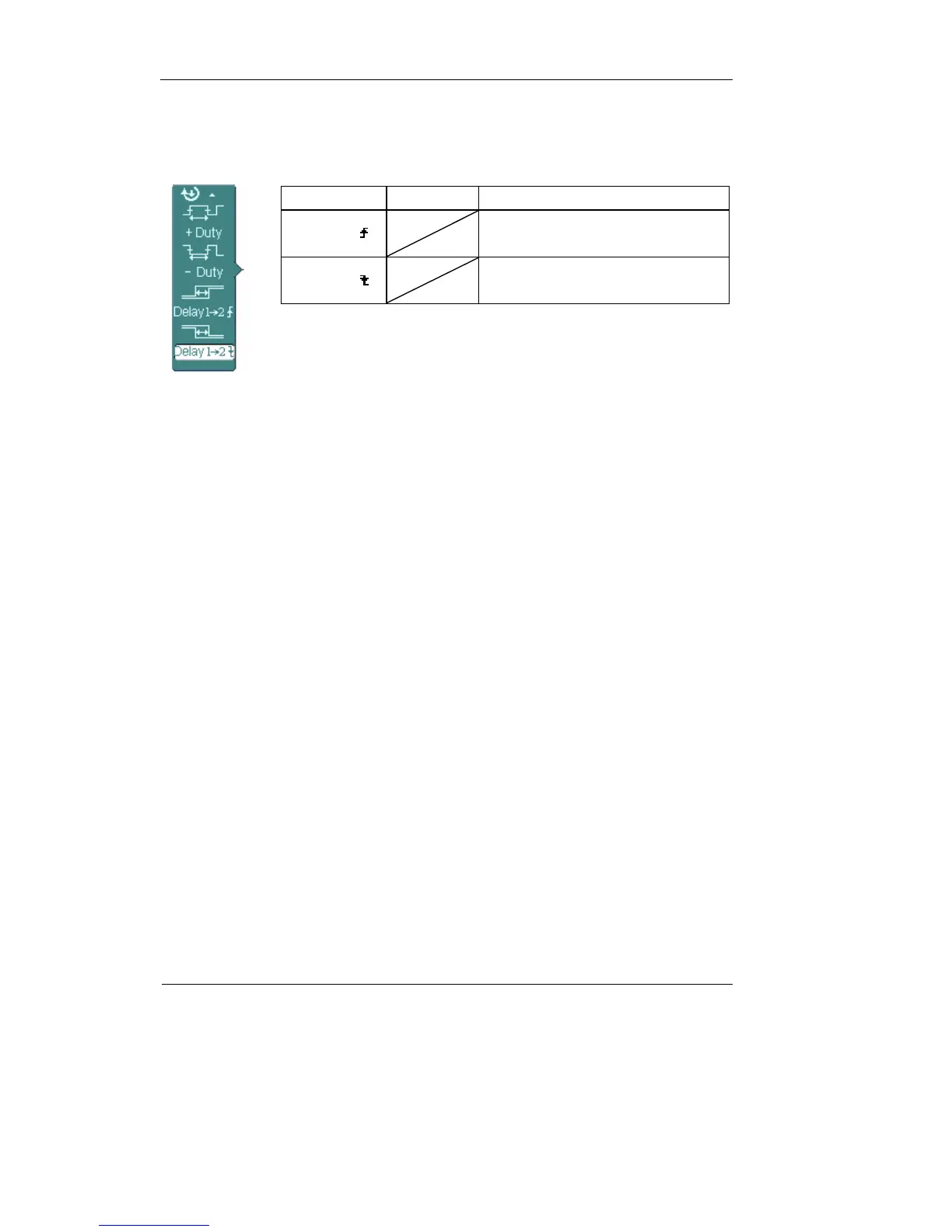

Figure 2-115 Table 2-78
Menu Settings Comments
Delay1→2
Measure the signals delay between
two channels at the rising edge
Delay1→2
Measure the signals delay between
two channels at the falling edge
NOTE: The results of the automatic measurements will be displayed on the bottom
of the screen. Maximum 3 results could be displayed at the same time. When there is
no room, the next new measurement result will make the previous results moving
left out of screen.
