User’s Guide for DS1000 Series

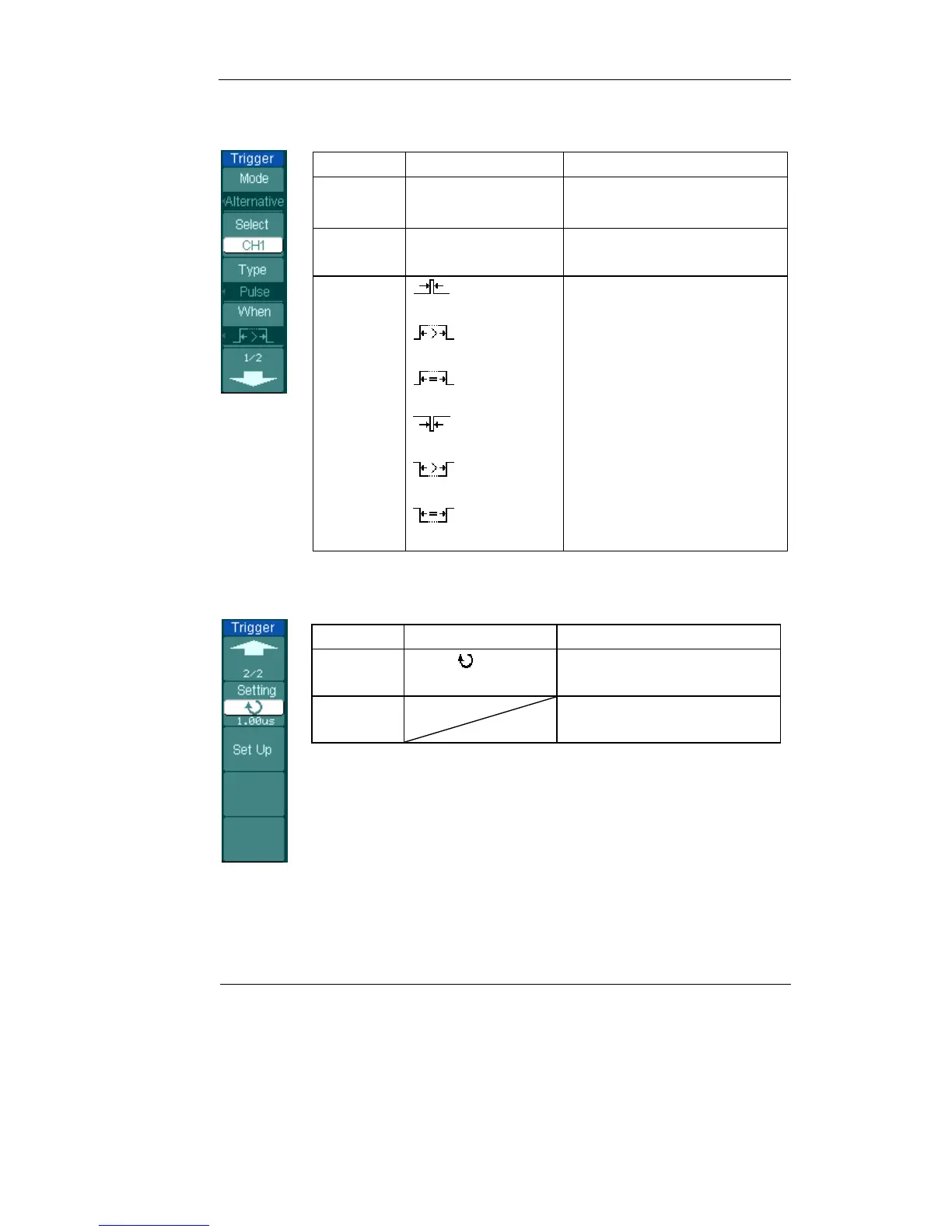

Figure 2-53 Table 2-29 (Trigger Type: Pulse Page One )
Menu Settings Comments
Select
CH1
CH2
Set trigger mode for Channel 1
Set trigger mode for Channel 2
Type Pulse
Set Pulse Trigger for the
channel
When
(+Pulse width
less than)
(+Pulse width
more than)
(+Pulse width
equal to)
(-Pulse width
less than)
(-Pulse width
more than)
(-Pulse width
equal to)
To select pulse condition
Figure 2-54 Table 2-30 (Trigger Type: Pulse Page Two)
Menu Settings Comments
Setting
<
pulse width>
Set the width of the pulse
Set Up
To go to set up menu. See
table 2-38
