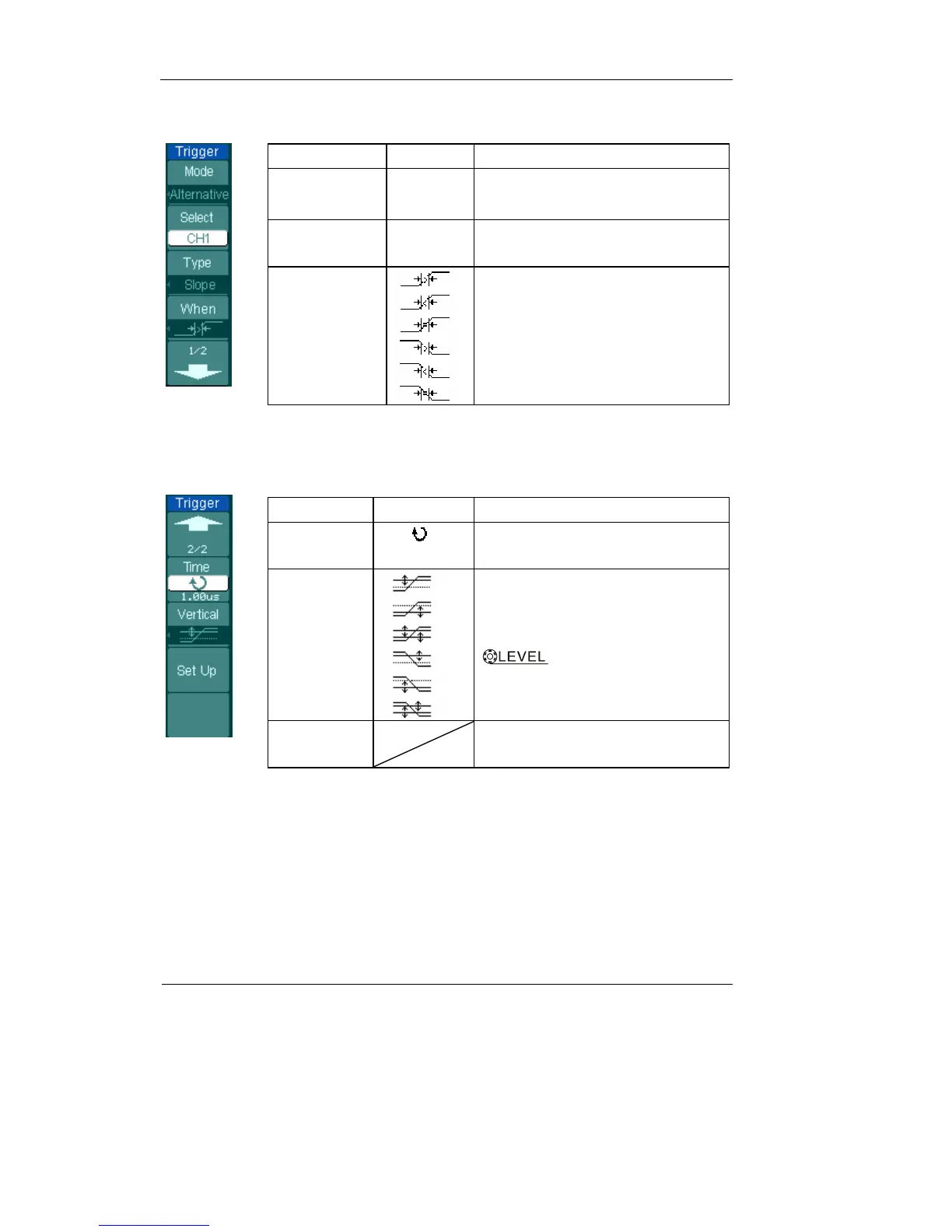

Figure 2-55 Table 2-31 (Trigger Type: Slope Page One)
Menu Settings Comments
Select
CH1
CH2
Set trigger mode for Channel 1
Set trigger mode for Channel 2
Type Slope
Set Slope Trigger for the vertical
channel
When
Set trigger condition
Figure 2-56 Table 2-32 (Trigger Type: Slope Page Two)
Menu Settings Comments
Time
<
Time Set >
Set slope time
Vertical
Select the level to be ad
j
usted by
Set Up
To go to set up menu. See table
2-38
