Harmo Dist (THD)
Measurement Interface:

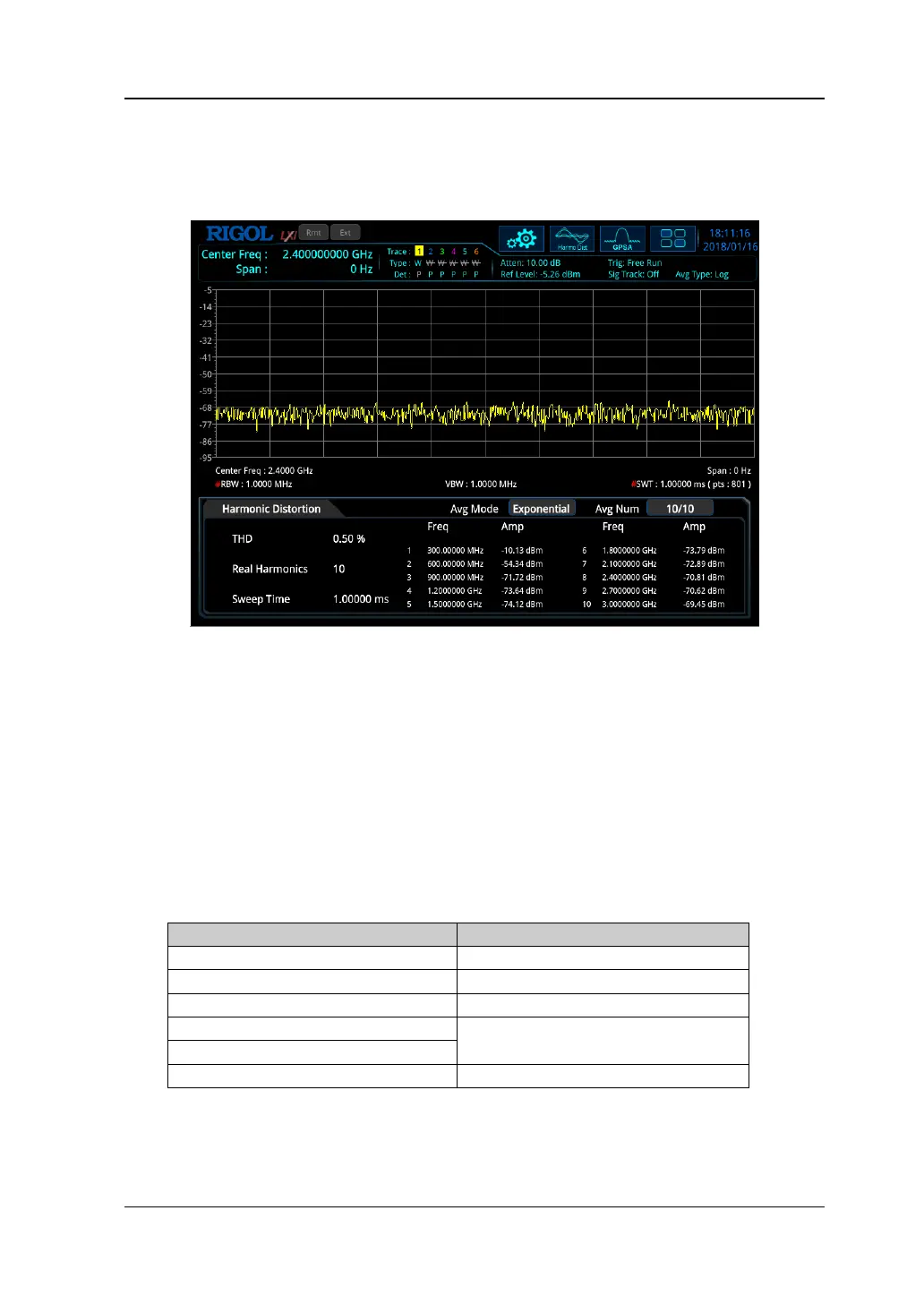

Figure 2-11 Harmonic Distortion Measurement Interface
Measurement Results: The amplitude of each order of harmonic and THD (total
harmonic distortion) of the carrier. At most, 10th-order harmonic can be measured.
Measurement Parameters: average count, average mode, auto average, number
of harmonics, and sweep time.
1. Avg Number
Specifies the number of times for averaging the measurement results. You can
use the numeric keys, the knob, or arrow keys to modify this parameter; you can
also use the touch screen to modify the parameter.
Table 2-50 Average Count for Harmo Dist Measurement
1
Left/Right Arrow Key Step
2. Avg Mode
Sets the average mode to "Exponential" or "Repeat". The default average mode
To Next Page
