appear in the Name column. A prefix of “al” indicates an
alarm trend data file.
6. Click one of the alarm trend data file names. A summary will
appear in the bottom right frame with instrument and alarm
setting information. If you want to view, graph, print, or export
the alarm trend data, double-click the filename or click the
View Data button at the bottom of the window.
7. Alarm trend data can be viewed in either table or graph
format
• In table format, the log times are shown along with the
peak (minimum for oxygen) gas readings for the previous
five seconds.
Alarm Event

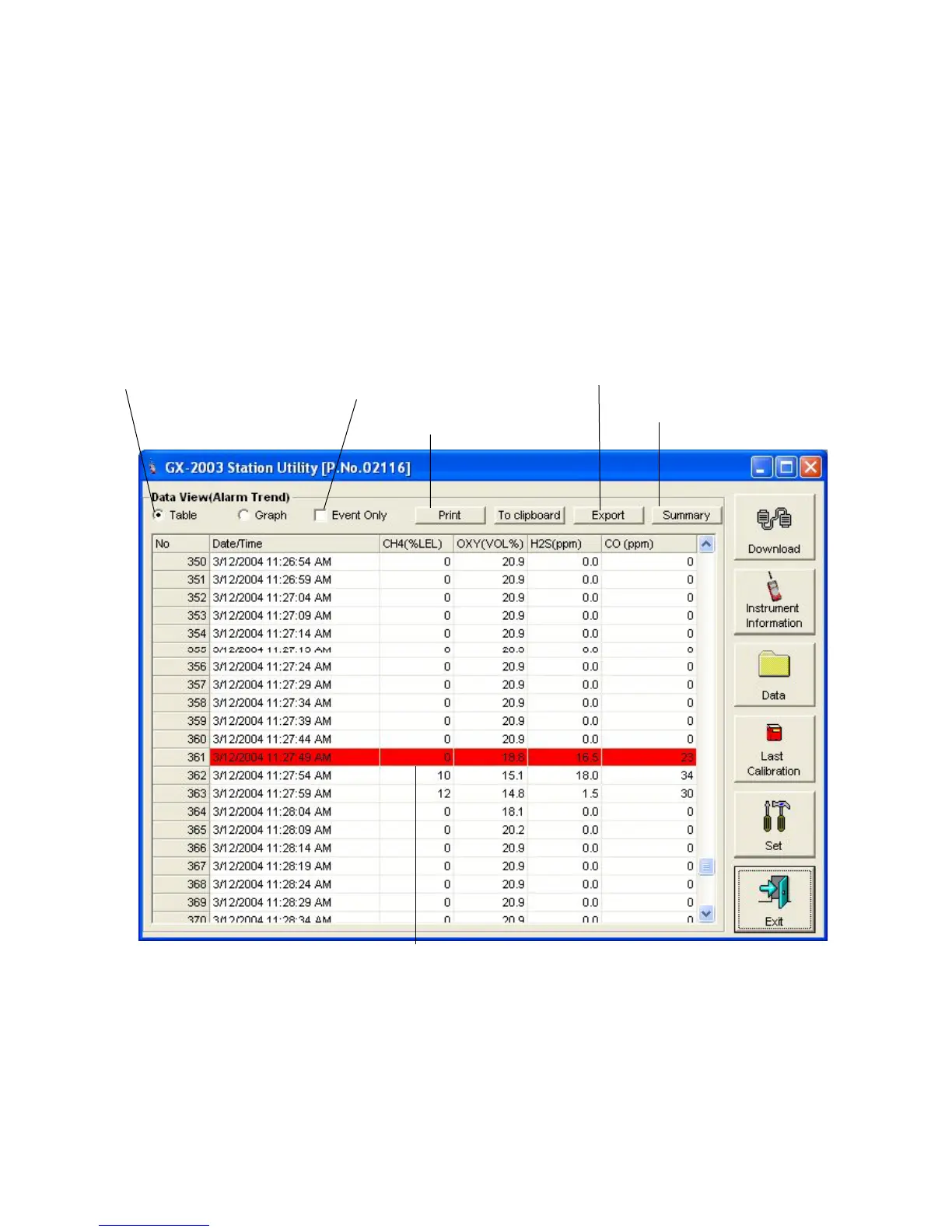

Figure 28: Alarm Trend Data in Table Format
Click to print data
Click to save data to a file
Click for a summary
of the data
Select table or
graph view
Click to view events only
