1 System Overview
1.3. Physical Connections

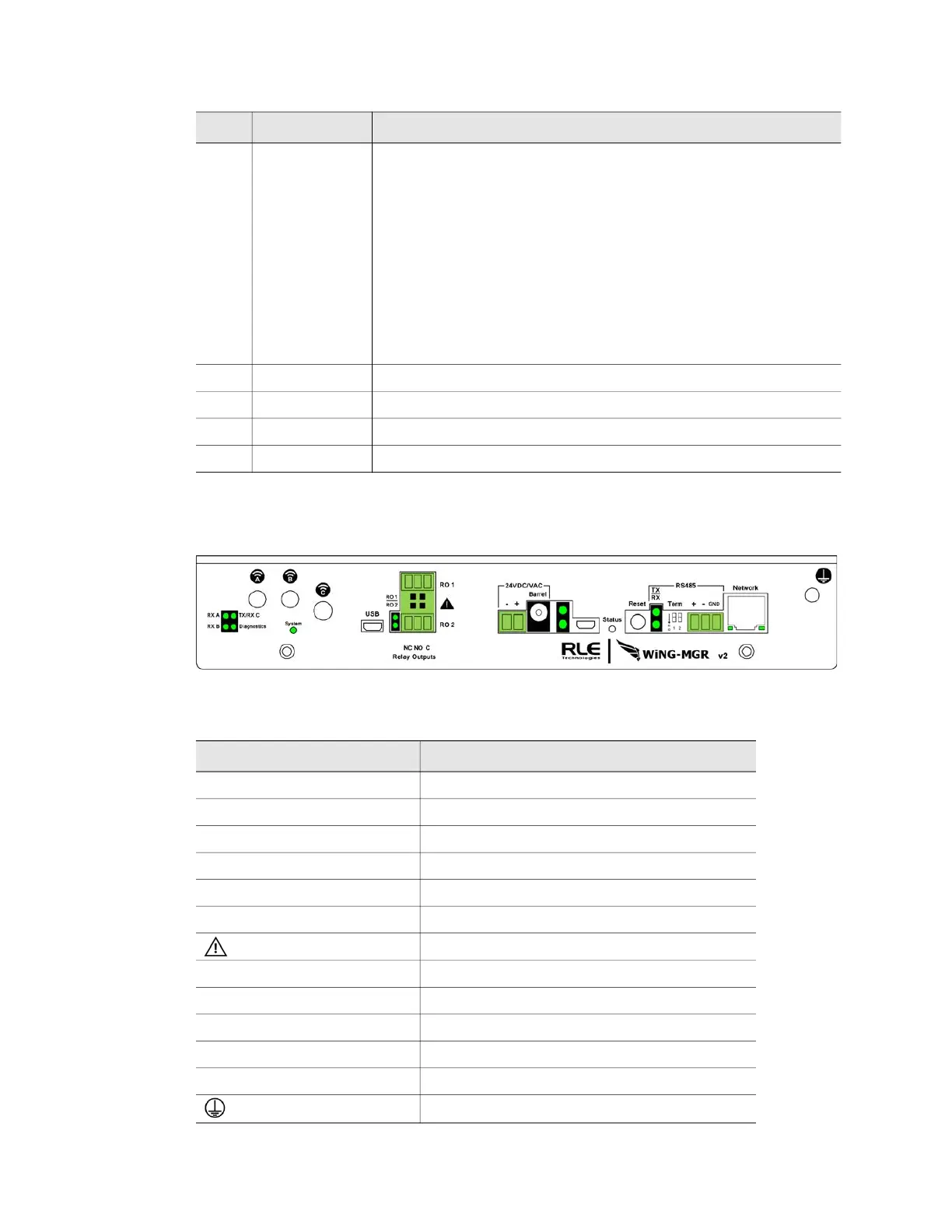

Figure 1.1 WiNG-MGR Physical Connections
5 System
900MHz
WiNG-MGR
868MHz
WiNG-MGR
Indicates on which radio communications channel set the manager
is operating:
• Blue blink pattern - WiNG-MGR is operating on the primary
900MHz channel set.
• Green blink pattern - WiNG-MGR is operating on the alternate
900MHz channel set.
• Purple blink pattern - WiNG-MGR is operating on the primary
868MHz channel set.
• Yellow blink pattern - WiNG-MGR is operating on the alternate
868MHz channel set.
6 RO1 | RO2 The relay output is activated
7 USB RX TX USB Receive/Transmit status LED
8 Status System status LED
9 RS485 RX TX RS485 Receive/Transmit status LED
LED Label Description
Table 1.1 WiNG-MGR LED Indicators
Item Description
Antenna A RP-SMA connector
Antenna B RP-SMA connector
Antenna C RP-SMA connector
USB USB mini B connector
RO 1 Relay output 1 (NC/NO/C)
RO 2 Relay output 2 (NC/NO/C)
Caution! Potential high voltage connection
24 VDC/VAC Power terminal block
Barrel Wall adapter connector
USB USB mini B connector
RS485 Port RS485 circuit connector (+ - GND)
Network 10/100 BASE-T connector Ethernet port
Earth ground connection
Table 1.2 WiNG-MGR Physical Connection Descriptions
