2.2.2 Wired Relay Outputs
The WiNG-MGR accommodates two wired relay outputs. Any relay output connections must
be made with double insulated wire (jacketed multi-conductor cable). If you wish to use this
functionality, wire the connections now. Your wiring may look similar to the connections
shown here:

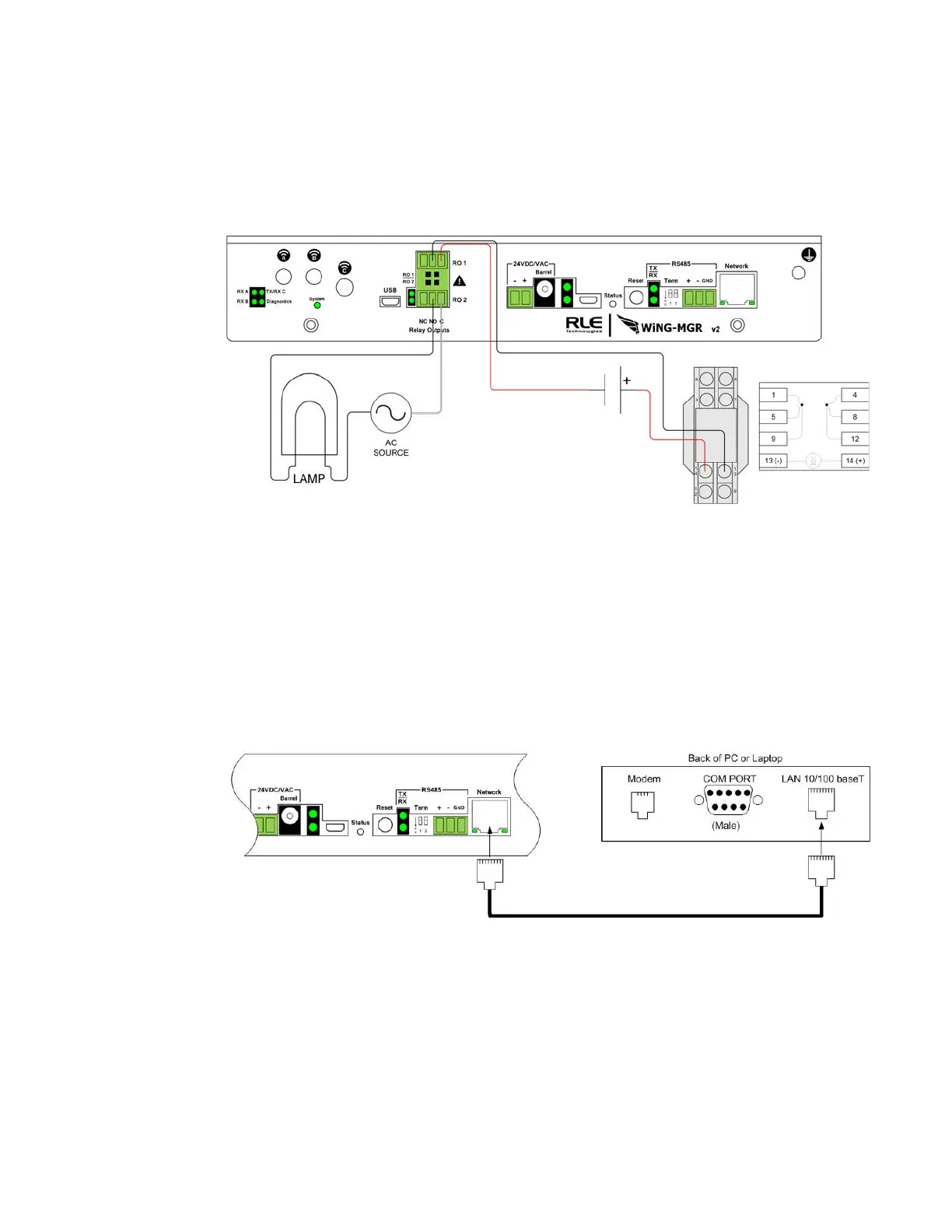

Figure 2.2 Wired Relay Output Connection
2.3. Connectivity
2.3.1 RJ45 Ethernet Connection
The WiNG-MGR has an internal 10/100BASE-T Ethernet port that is used for configuration.
The Ethernet port supports Web browser access, email (SMTP), BACnet secondary, Modbus
server, and SNMP. Use an Ethernet cable to connect the device directly to a PC or to a hub or
switch.
Figure 2.3 Ethernet Connection to a PC Using an Ethernet Cable
