52 WiNG-MGR v2 User Guide 800.518.1519

3 Web Interface

3.7.6 E-mail

Configure e-mail settings through this page.

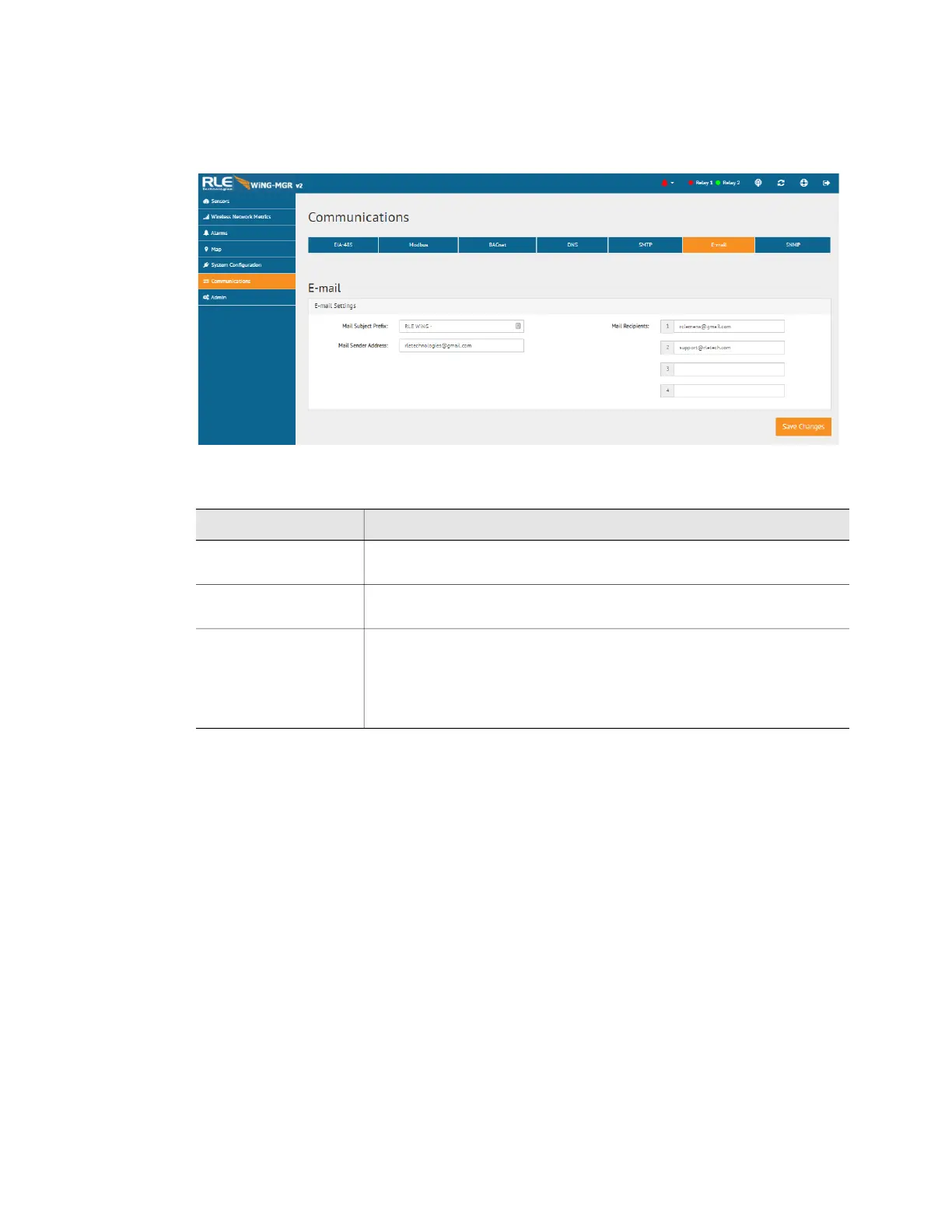

Figure 3.27

Email Configuration

Option Description

Mail Subject Prefix Enter the text that will appear before the system generated text in the

subject line of any outgoing email messages.

Mail Sender Address Any email messages sent by the WiNG-MGR will come from this

valid email address.

Mail Recipients Email alerts can be sent to four recipients. Enter up to four unique

email addresses here.

If you would like a message to be sent to a distribution group, you

can use the email address of the distribution group in one of these

fields.

Table 3.16

Email Configuration Options
