3 Web Interface
3.5. Map
The map page shows a user uploaded map image and sensor values that have been placed on
the map. The values will be color coded to indicate normal, warning or alarm. Mouse over the
reading on the map to see which sensor is providing the specific reading.
Click the icon next to the Sensor Map text to pop the map out into a new browser tab.
Complete instructions for creating this map are found in section 3.6.5, “Mapping” on page 44.

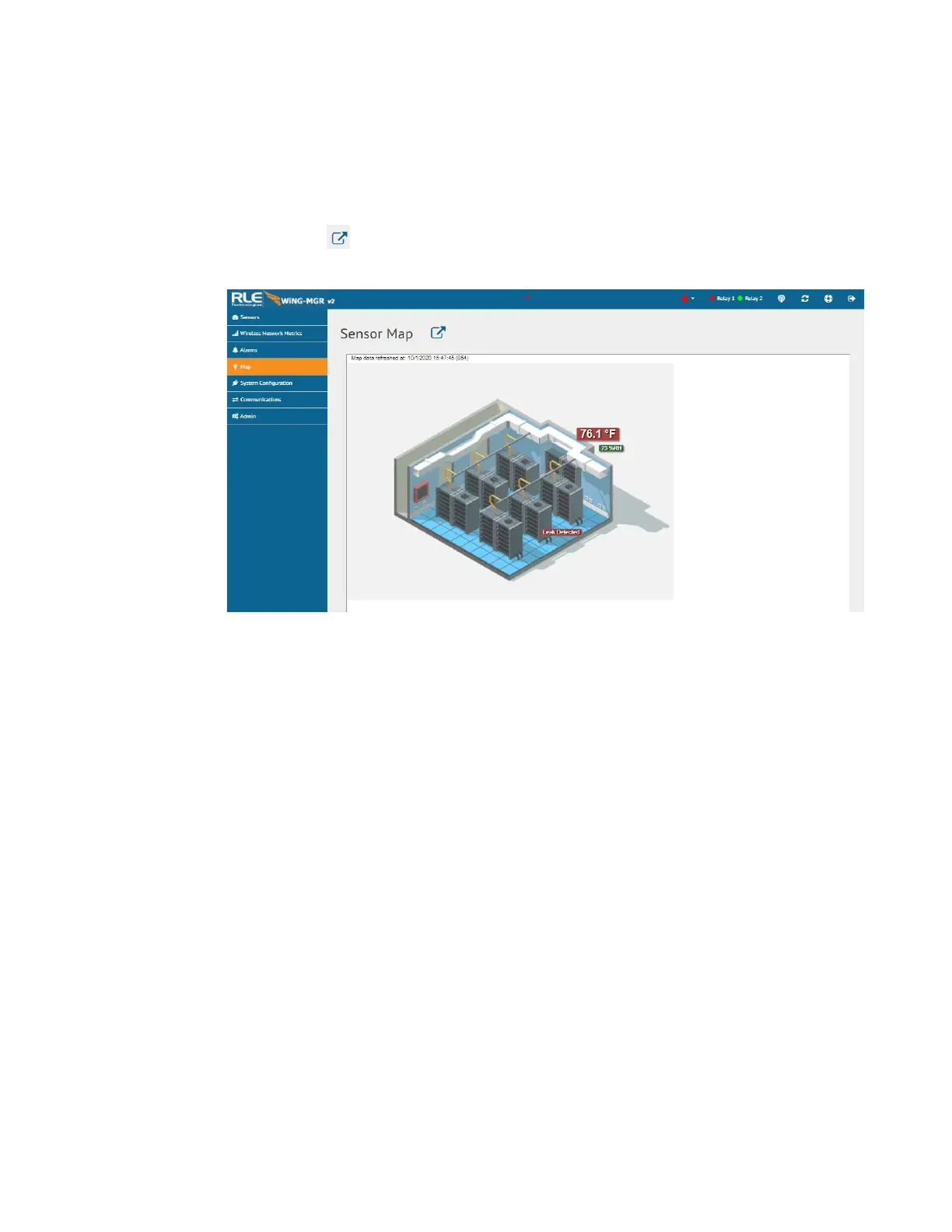

Figure 3.15
Map Page
