Robustel R3000 Quad - Gre Vpn

Robustel R3000 Quad User Guide
RT_UG_R3000 Quad_v.3.0.0 28 May, 2017 118 / 131
Confidential
4.2.3 GRE VPN

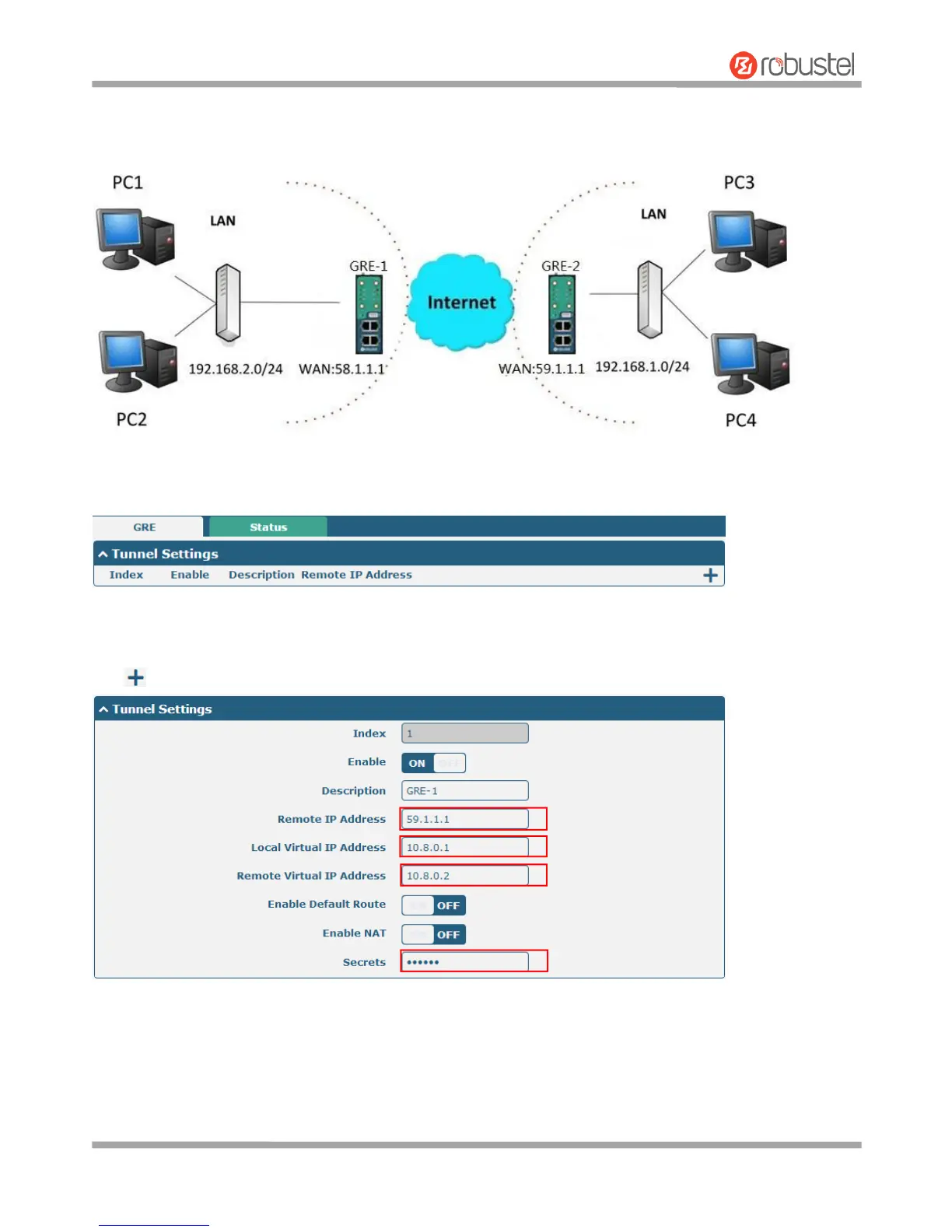

The configuration of two points is as follows.
The window is displayed as below by clicking VPN > GRE > GRE.
GRE-1
：
Click button and set the parameters of GRE-1 as below.
When finished, click Submit > Save & Apply for the configuration to take effect.
