Robustel R3000 Quad User Guide
RT_UG_R3000 Quad_v.3.0.0 28 May, 2017 22 / 131
Confidential

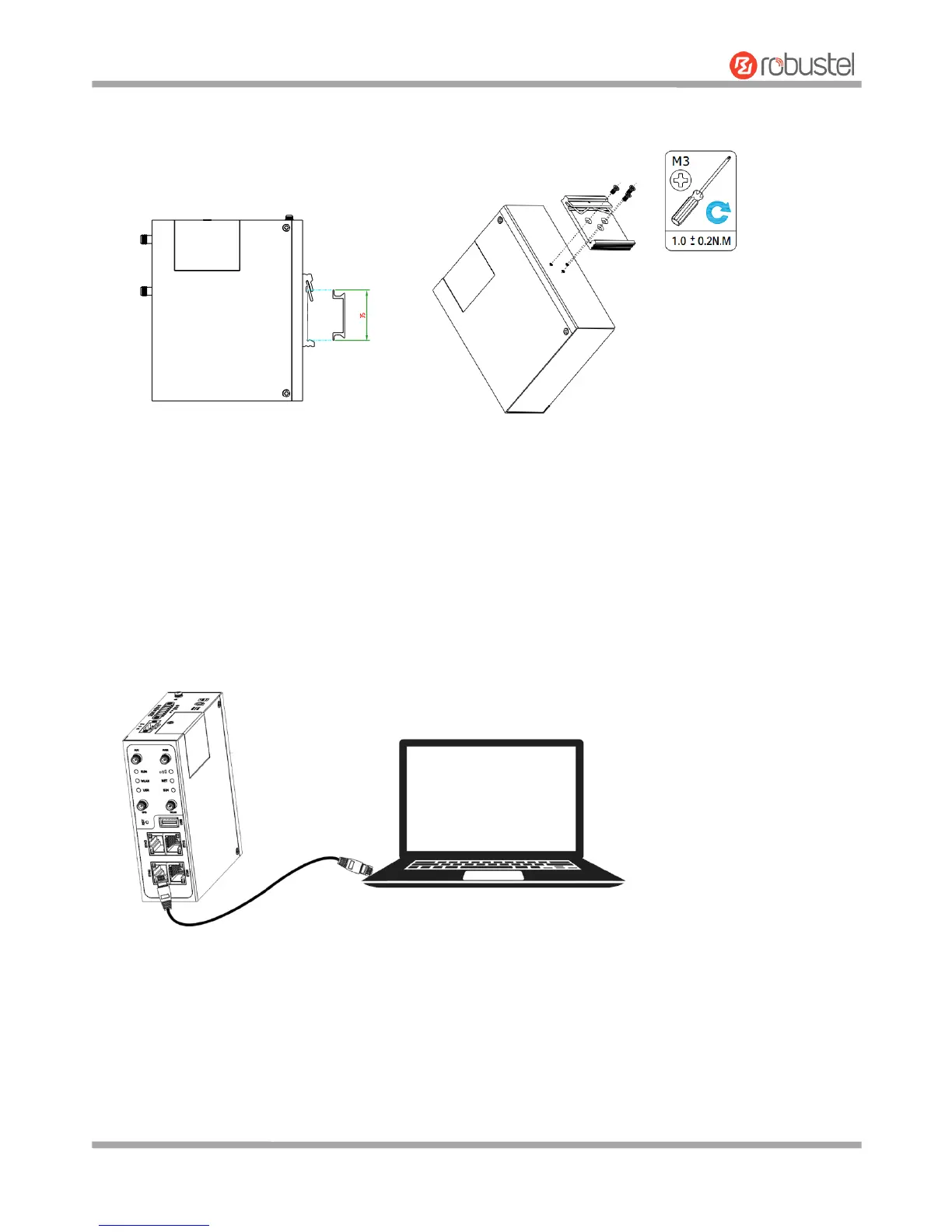

2. DIN rail mounting
DIN rail size (measured in mm)
Use 3 pcs of M3*6 flat head Phillips screws to fix the DIN rail to the router, and then hang the DIN rail on the
mounting bracket. It is necessary to choose a standard bracket.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
2.9 Connect the Router to a Computer
Connect an Ethernet cable to the port marked ETH at the bottom of the router, and connect the other end of the
cable to your computer.
