Rockwell Automation Publication 1794-UM066C-EN-E - April 2023 37
Chapter 5 Analog I/O with Direct Connection
Modify the Ladder Program Make the following change to the ladder program to test the new configuration.

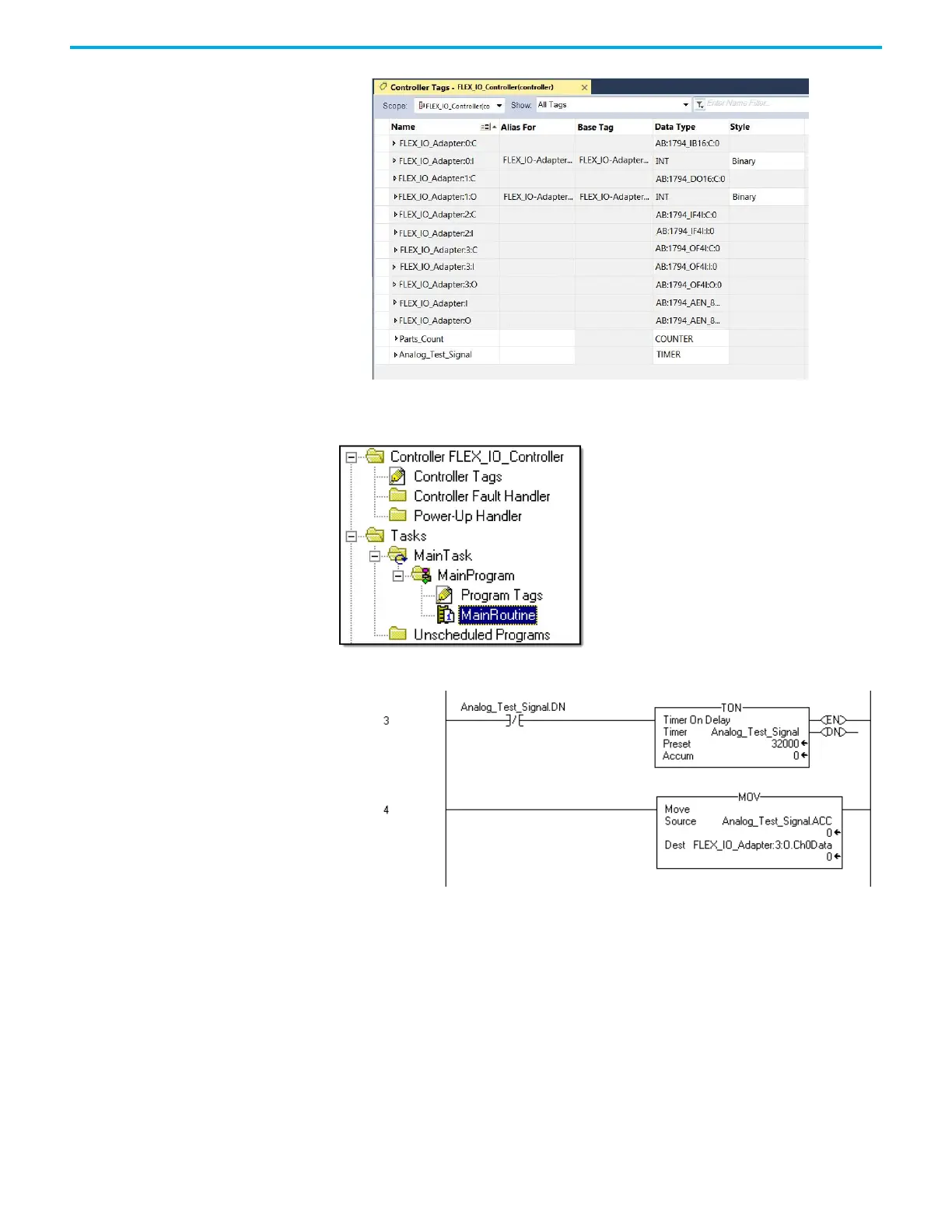

1. Double-click Main Routine under the Main Program folder, and then add rungs 3 and 4 to the
ladder program.
2. Save the program.
Download the Program
To download the program to the controller do the following:
1. Click the Communications menu, and then select Who Active.
The Who Active dialog opens.
