Rockwell Automation 1794-AENTR, 1794-AENTRXT User Manual

34 Rockwell Automation Publication 1794-UM066C-EN-E - April 2023
Chapter 5 Analog I/O with Direct Connection

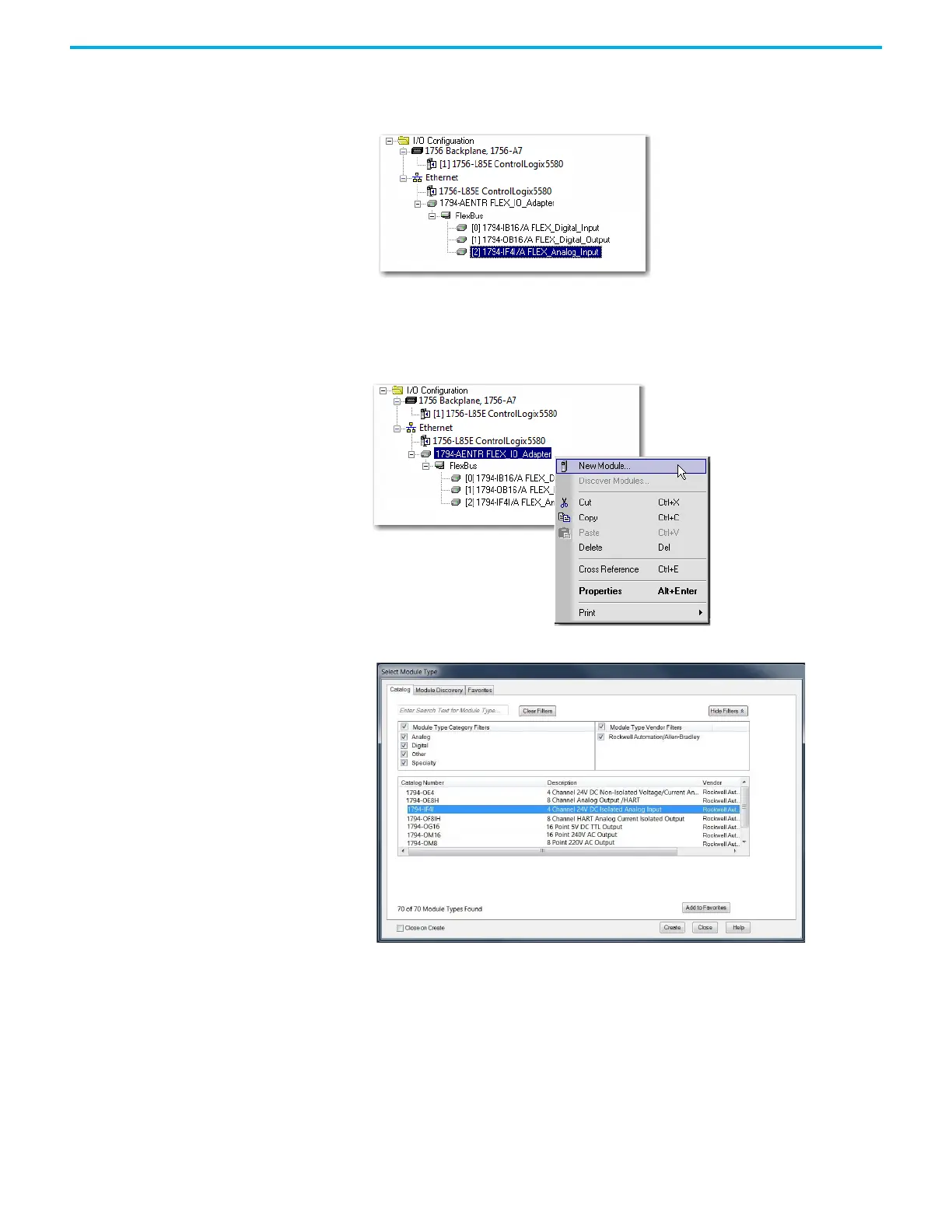

7. Click Apply to save the configuration, and then OK to close the dialog.
The analog input module appears in the I/O configuration that is indented under the
1794-AENTR adapter.
Add the Analog Output Module to the I/O Configuration
1. Under the I/O Configuration folder, right-click the remote 1794-AENTR adapter, and then
select New Module.
The Select Module Type dialog opens.
