Rockwell Automation Allen-Bradley Kinetix 5700 Application Technique

Rockwell Automation Publication MOTION-AT007A-EN-P - May 2020 11
DC-bus Wiring Guidelines Chapter 1

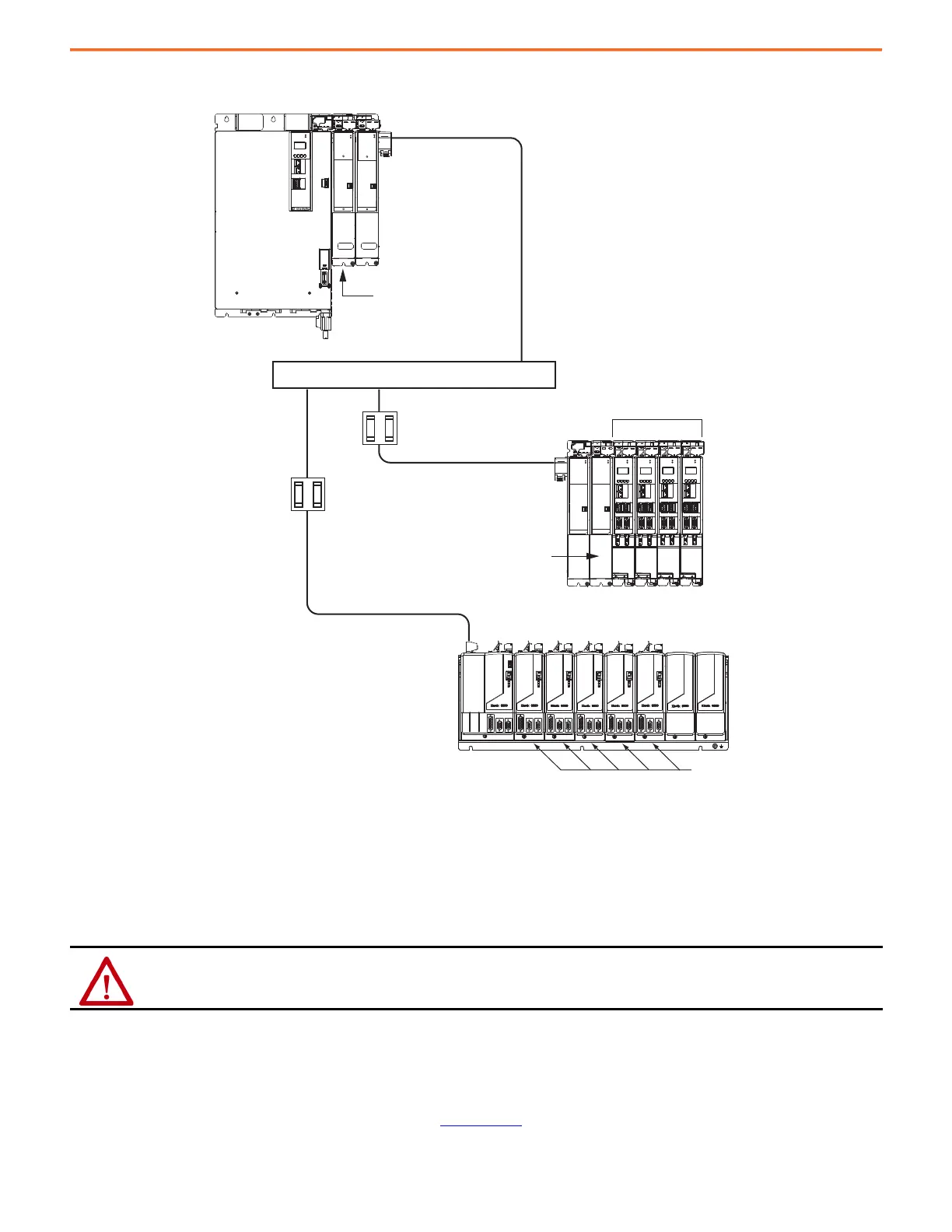

Figure 4 - DC Bus-bar Application
Precharge
Precharge is the process of gradually increasing the DC-bus voltage. During this increase in DC-bus voltage, the DC-bus filter capacitors are
charged in a controlled manner. The precharge assembly can be part of the drive design or for some drives it can be externally provided and
controlled.
If an external voltage source is used to power the logic boards of the PowerFlex drives, take precautions to control the precharge sequence.
We recommend that you use the Precharge Enable digital input on the drive for common bus operation. The logic input can be coordinated
through a PLC or system-level control to sequence the precharge. The sequencing lets charge time constants for various horsepower drives
settle out before the precharge completes. Generally, a three second delay is acceptable after power has been applied. See Drives in
Common Bus Configurations Application Technique, publication DRIVES-AT002
, for precharge functionality on all Powerflex drive frame
types.
ATTENTION: An external source of power can be present. To avoid an electric shock hazard, verify that the AC power supply has been
removed before any maintenance is performed.
MOD
NET
MODULE
STATUS
MOD
NET
2
1
1
I/O
6
5
10
OK+
OK–
EN–
EN+
MOD
NET
2
1
UFB-A UFB-B
D+
D-
MF-A MF-B
D+
D-
MODULE
STATUS
MOD
DC BUS
1
I/O-A
6
510
1
I/O-B
6
510
MOD
NET
UFB-A UFB-B
D+
D-
MF-A MF-B
D+
D-
I/O-A
6
10
1
I/O-B
6
510
MOD
NET
2
1
UFB-A UFB-B
D+
D-
MF-A MF-B
D+
D-
1
I/O-A
6
510
1
I/O-B
6
510
MOD
NET
UFB-A UFB-B
D+
D-
MF-A MF-B
D+
D-
I/O-A
6
10
1
I/O-B
6
510
MODULE
STATUS
MOD
DC BUS
MOD
DC BUS
2198-CAPMOD-2240
Capacitor Module
DC-bus Circuit
Protection
DC-bus
Extension
DC-bus Bar
Kinetix 5700
Servo Drive System
(power supply cluster #1)
Regenerative Bus Supply
2094-BMxx-S
Axis Modules (5)
2094-BMxx-Mxx-S
IAM Module
Common Bus Follower
2094-PRSx
Power Rail
Kinetix 6000 Servo Drive System
DC-bus Circuit
Protection
Kinetix 5700
Servo Drive System
(cluster #2)
Dual-axis Inverters
2198-CAPMOD-2240
Capacitor Module
2198-DCBUSCOND-RP312
DC-bus Conditioner Module
2198-DCBUSCOND-RP312
DC-bus Conditioner Module
Accessory
Modules
Accessory
Modules
