Rockwell Automation Allen-Bradley Kinetix 5700 - Typical System Configurations

26 Rockwell Automation Publication MOTION-AT007A-EN-P - May 2020
Chapter 3 Non-regenerative Common DC-bus Configurations With Passive or Active Shunt
Typical System Configurations
In this example, standalone AC drives, Kinetix 6000 drives, and Kinetix 7000 drives receive DC-bus power from three 2198-P208 DC-bus
power supplies. An external passive shunt is wired to one of the 2198-P208 DC-bus supplies.

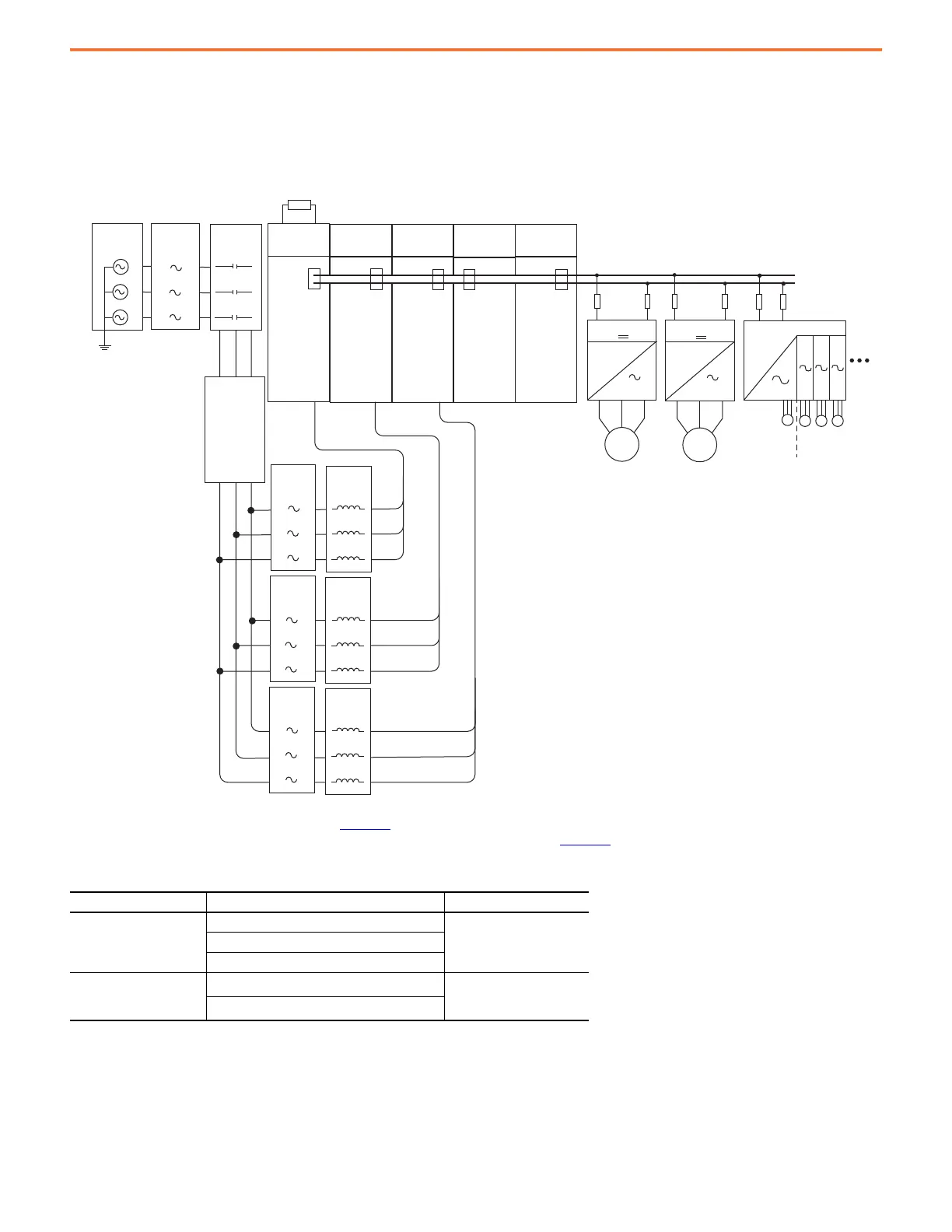

Figure 15 - DC-bus Supply with Multiple AC Drives and External Passive Shunt
(1) Line reactors are required when three 2198-P208 DC-bus supplies are configured. For line reactor requirements and selection when one or two 2198-P208 DC-bus supplies are configured,
see the Kinetix 5700 Servo Drives User Manual, publication 2198-UM002
.
(2) For passive shunt wiring and mounting information, see the Kinetix 5700 Servo Drives User Manual, publication 2198-UM002
.
Table 11 - Special Bus Requirements
Drawing Designation Supported Drives Special Bus Requirements
AC drives
PowerFlex 750-Series: Frames 1…6
NoneKinetix 7000: 2099-BM06-S…2099-BM08-S
Kinetix 7000: 2099-BM09-S…2099-BM12-S
Kinetix 6000 and
Kinetix 6200/6500 drives
Kinetix 6000: All 460V configurations
(1)
(1) No internal precharge. Drives must be placed in common-bus follower configuration.
None
Kinetix 6200/6500: All 460V configurations
(1)
2198-P208
2198-CAPMOD-2240
2198-CAPMOD-DCBUS-IO
2198-P208
2198-P208
DC+
DC-
M
DC+
DC-
M
AC Drive AC Drive
M
M
M
DC+ DC-
Capacitor
Module
DC-Bus
Power Supply
Extension
Module
DC Bus
DC-Bus
Power Supply
DC-Bus
Power Supply
Reactor
Line
Reactor
Line
Reactor
Line
AC Line Filter
Three-phase
Circuit
Protection
Circuit
Protection
Circuit
Protection
Kinetix 6000 or
Kinetix 6200/6500 Drives
M
Integrated
Axis Module
Axis
Modules
Three-phase
Source
Contactor
Three-phase
Circuit
Protection
(1)
(2)
External Bulletin 2198 Passive Shunt
(1)
(1)
