50 Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020
Chapter 2 Drive Installation
8. Refer to the electrical drawing and make the above control wiring
connections.

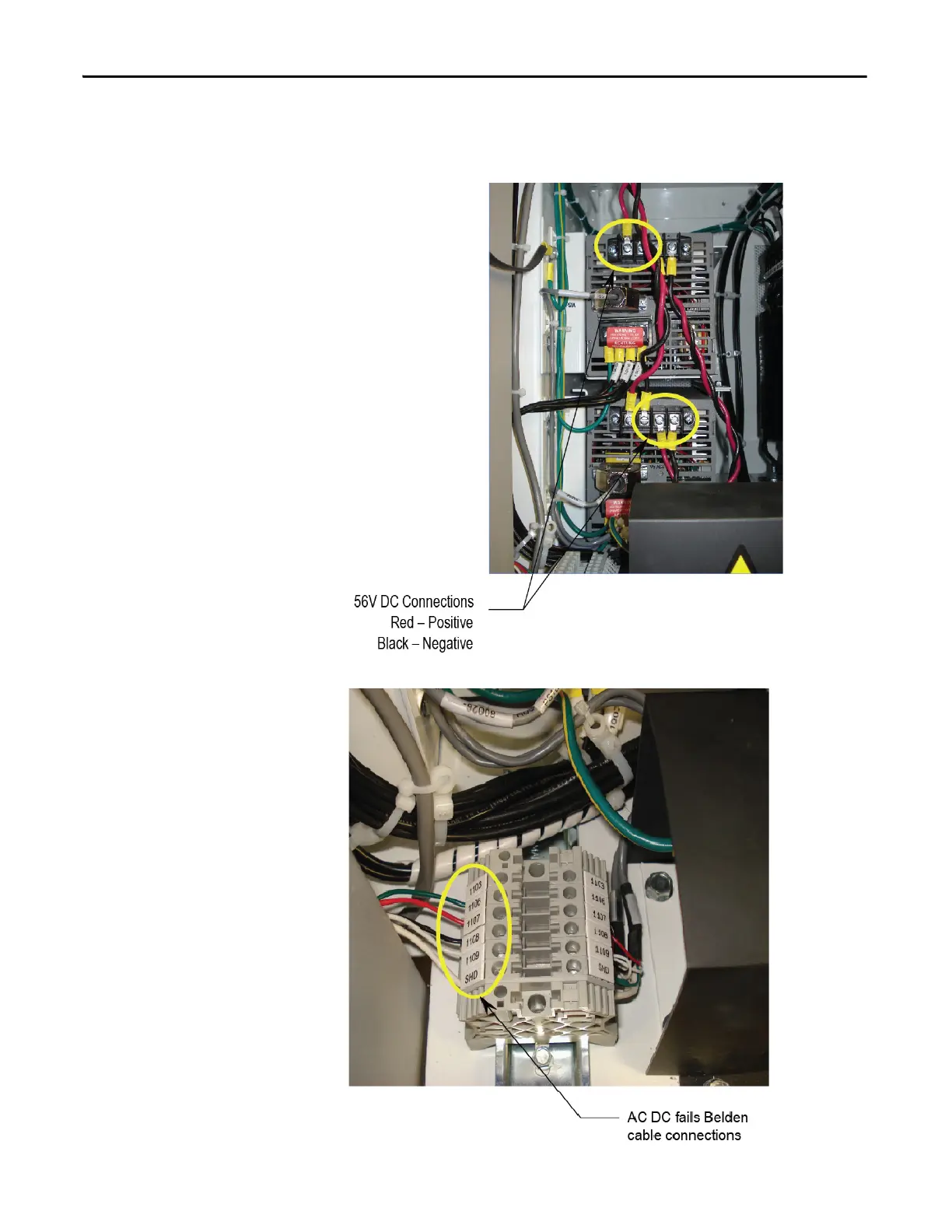

Figure 35 - 56V DC Connections
Figure 36 - AC DC fails Belden Cable Connection
