Rockwell Automation Publication 750-TG101A-EN-P - June 2022 123
Chapter 5 Frame 6 Renewal Kits Installation

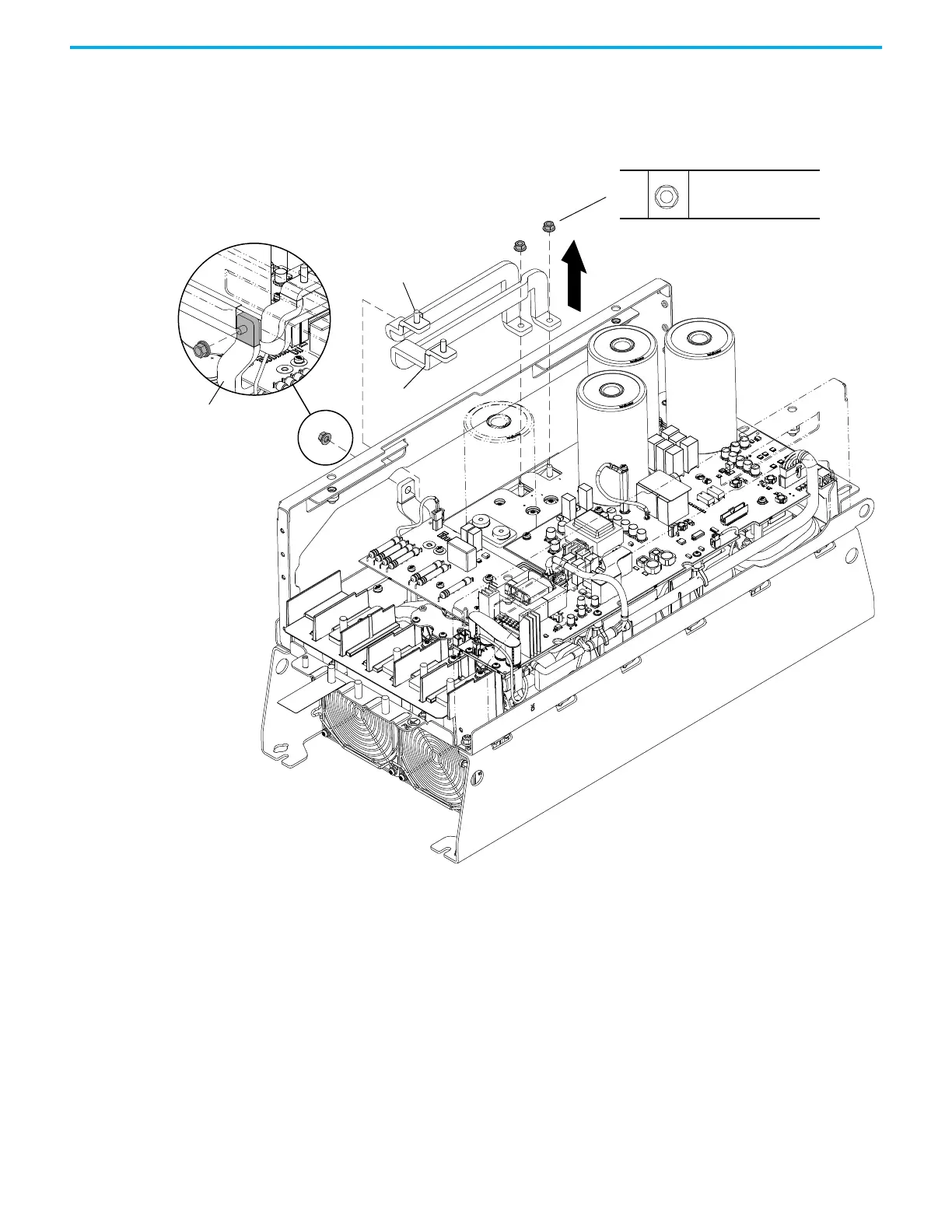

15. For DC input drives with a dynamic brake option installed, remove the
M6 hexagonal nut that secures the brake bus bar to the +DC bus bar.
16. Remove the two M6 hexagonal nuts that secure the DC bus bars to the
laminated bus.
16
M6
10 mm
5.2 N
•m (46.0 lb•in)
Brake Bus Bar
+DC Bus Bar
–DC Bus Bar
15
