Chapter 6 Frame 7 Renewal Kits Installation

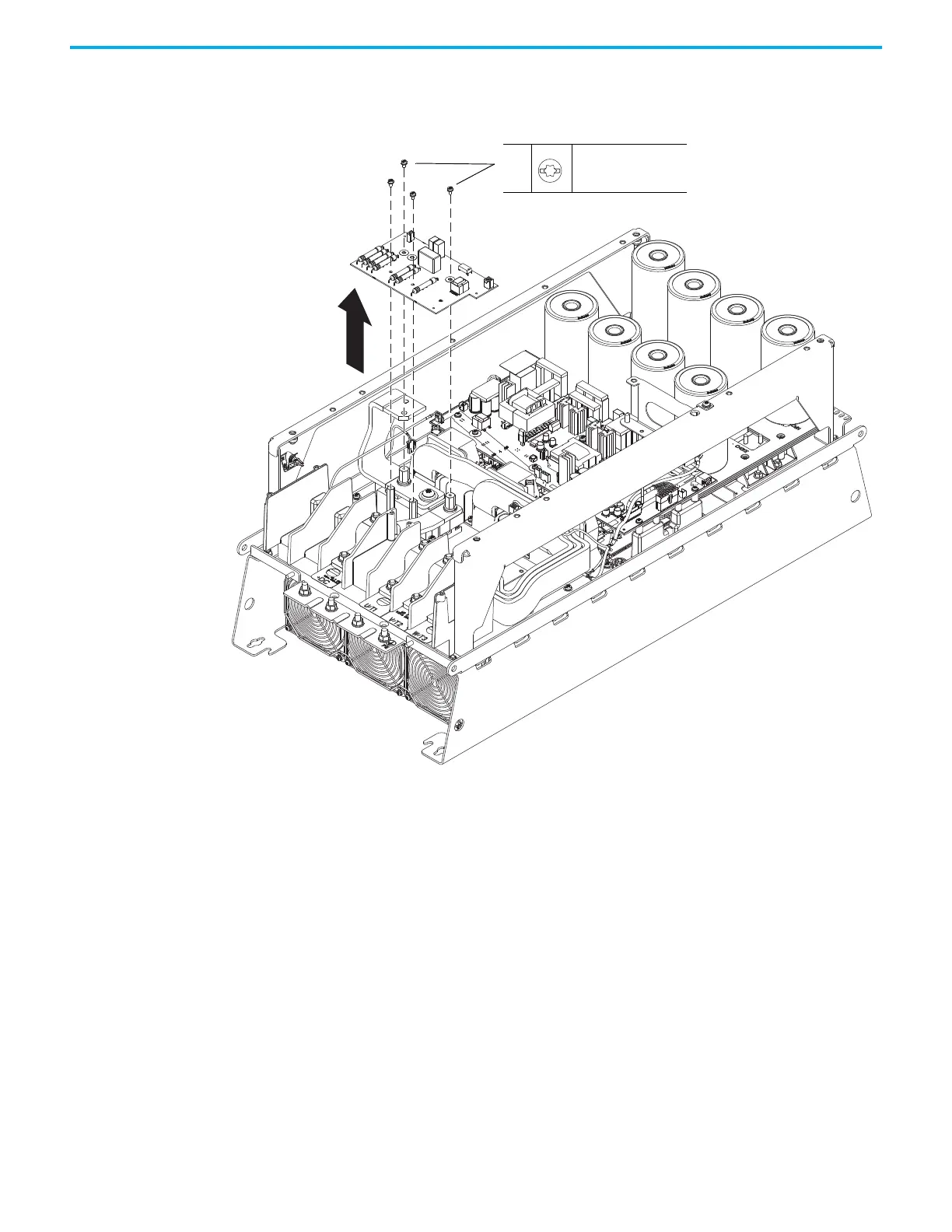

24. Remove the four M4 x 8 mm slotted-Torx screws that secure the DC
precharge circuit board to the standoffs and remove the board from the
drive.
Install the DC Precharge Circuit Board
Install the DC precharge circuit board in the reverse order of removal.
24
M4 x 8 mm
T20
2.6 N
•m (23.0 lb•in)
