Rockwell Automation Publication 750-TG101A-EN-P - June 2022 177
Chapter 6 Frame 7 Renewal Kits Installation

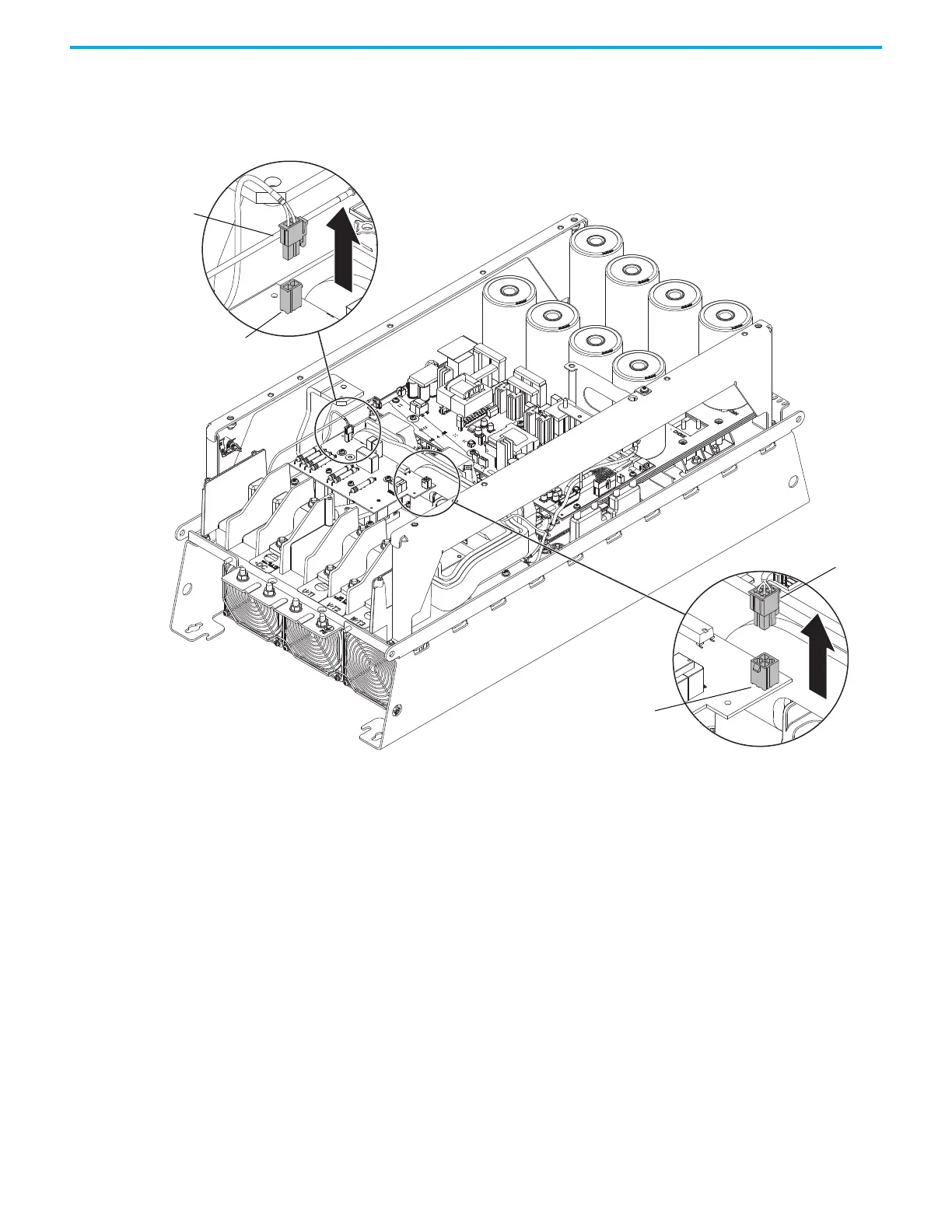

22. Remove the IGBT wire harness P11 from connector J1 on the left side of
the AC precharge circuit board.
23. Remove the wire harness connector P10 from connector J10 on the right
side of the AC precharge circuit board.
P10
J10
J11
P11
23
22
