Rockwell Automation Publication 750-TG101A-EN-P - June 2022 63
Chapter 4 Frames 1…5 Renewal Kits Installation
Install the Control Pod HIM Cradle, Frames 2…5
Install the control pod HIM cradle in the reverse order of removal.

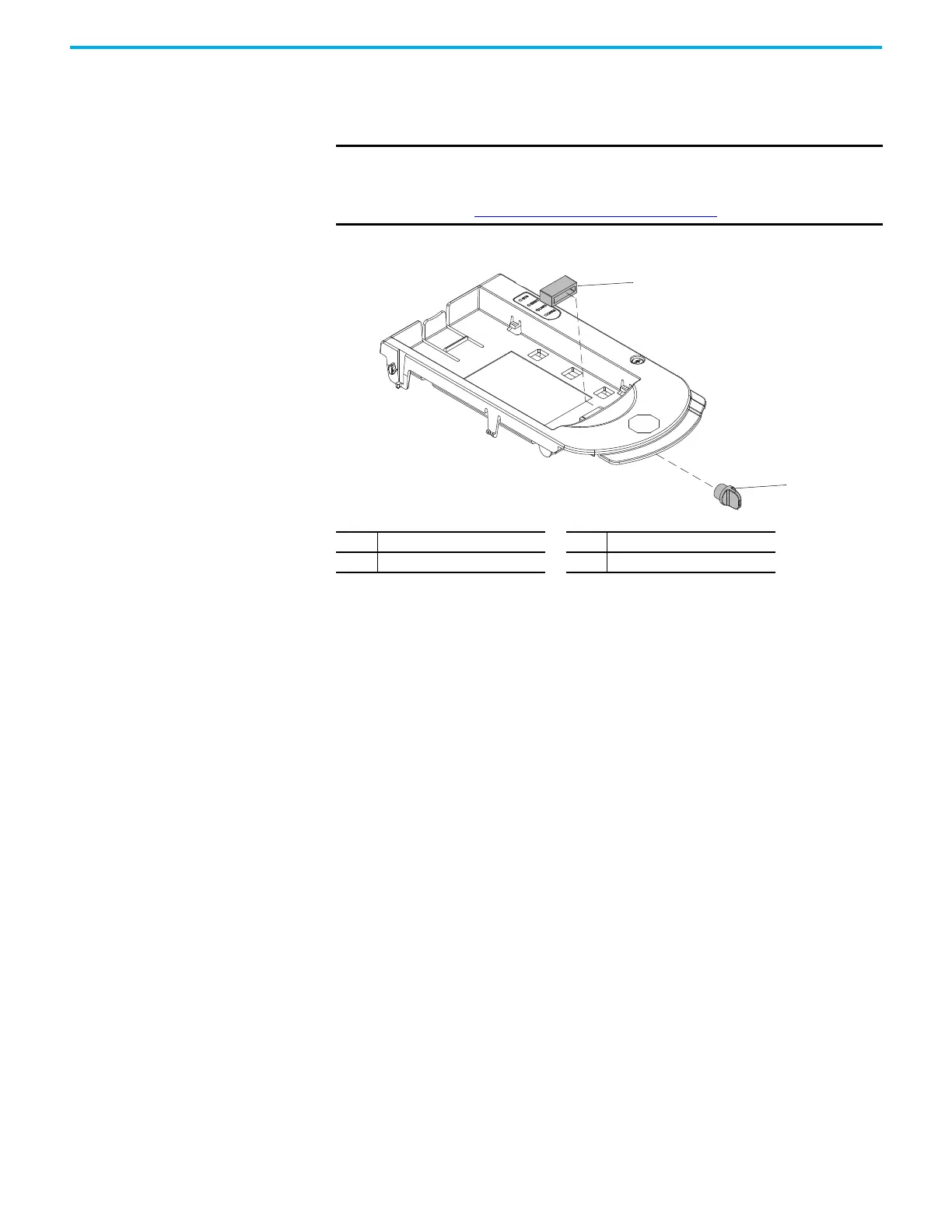

• Do not remove the protective cover from these connectors on the HIM
cradle unless a connection is made during reinstallation:
IMPORTANT Do not remove protective covers unless used at the time of installation. For
the product to meet the corrosive atmosphere rating, protective covers
must remain installed in unused connectors during storage and operation.
See Protective Covers on Kits with XT
on page 16 for details.
Item Description Item Description
1 HIM connector 2 DPI connector (port 2)
