146 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 6 Frame 7 Renewal Kits Installation
Flange Gasket Replacement Replacement kit catalog numbers: SK-RT-FG1-F7
This kit is used for flange, NEMA/UL Type 4X/12 back enclosures only.
Flange, NEMA/UL Type 4X/12 back drive weight: 82 kg (180 lb).
All lifting equipment and components (hooks, bolts, lifts, slings, chains, and so
forth) must be properly sized and rated to lift and hold the weight of the
equipment safely.
When lifting and handling these products, follow all applicable local, national,
and international codes, standards, regulations, or industry guidelines for safe
practices.
Remove the Flange Gasket
Follow theses steps to remove the gaskets, support brackets, and flange.
1. Review the Product Advisories
on page 11.
2. Turn off and lock-out incoming power. See Remove Power from the
System on page 12.
3. Remove the cover. See Remove the Cover
on page 128.
4. If used, disconnect the HIM DPI cable from the connector (port 2) on the
HIM cradle.
5. Disconnect any cables from the Ethernet connectors on the bottom of the
main control board in the control pod.
6. If used, disconnect the plug-in terminal block (TB1) on the bottom of the
main control board.
7. If an option module is installed, disconnect any I/O wiring terminal
blocks If an option module is installed, disconnect any I/O wiring
terminal blocks and remove the option module (not shown in this
image).
IMPORTANT Due to the drive weight, a crane or hoist and lifting hardware is
recommended for removing the drive from the panel mount surface.
If a cable is not connected to the DPI port on the HIM cradle, be sure to leave the
protective cover installed.

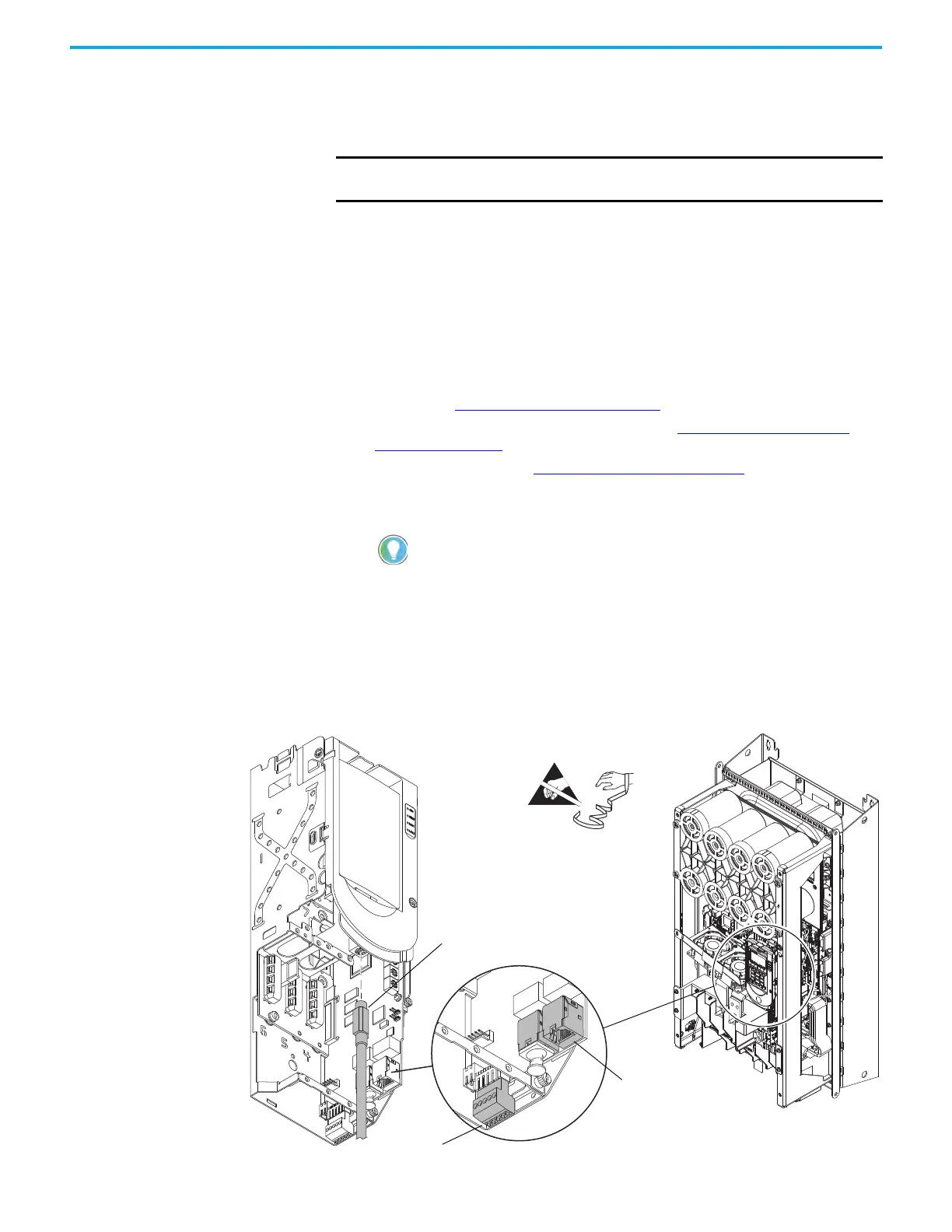

Control Pod Shown Separated from the Drive for Clarity Only.
5
4
6
To Next Page
